SELECT A DIAGRAM

01 - Door


02 - Oven

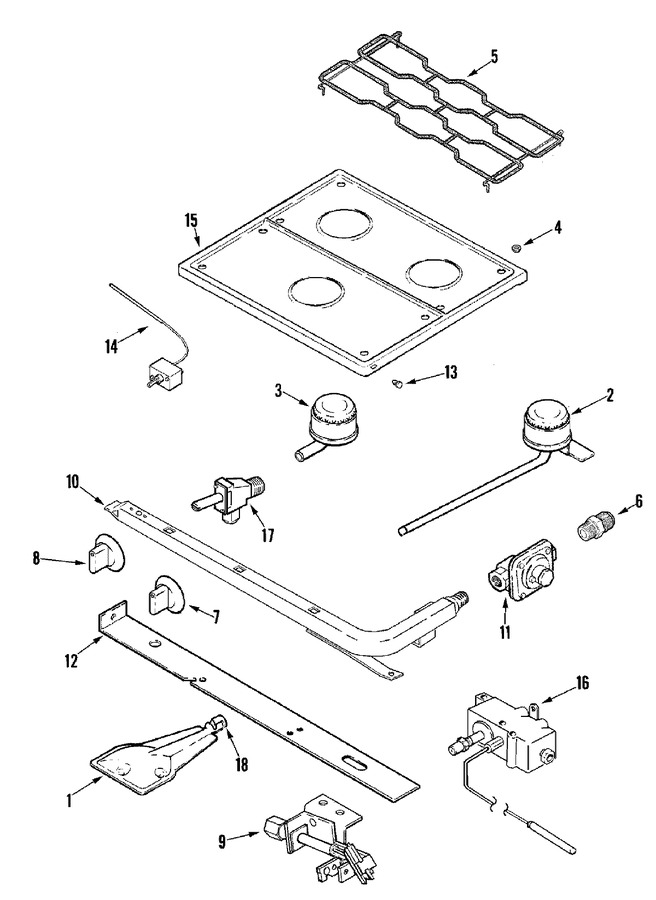

03 - Top & Gas Controls


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74003343		Burner, Oven	10	Appelez-nous	-
2	74004674		Burner, Top (rear)	10	Appelez-nous	-
3	74004675		Burner, Top (frt)	10	Appelez-nous	-
4	Y8007P02060		Grommet	10			$ 5.88
5	74007277		Grate (blk)	10	Appelez-nous	-
6	74004234		Fitting, Half Union	10			$ 49.91
7	74003941		Knob, Burner (blk)	10	Appelez-nous	-
7	74003942		Knob, Burner (blk)	10			$ 17.80
8	74004645		Knob, Thermostat (blk)	10	Appelez-nous	-
9	1555261K		Nut & Ferrule (3/16``)	10	Appelez-nous	-
9	74006334		Pilot, Oven	10			$ 12.79
10	74004360		Pipe, Manifold	10	Appelez-nous	-
11	74004235		Regulator, Pressure	10	Appelez-nous	-
12	74001834		Support, Oven Burner	10	Appelez-nous	-
13	8003P008-60		Bumper	10	Appelez-nous	-
14	1555222		Nut, Loxit (3/16``)	10	Appelez-nous	-
14	74006337		Tubing 1/4	10	Appelez-nous	-
14	7507P049-60		Flange, T Stat	10	Appelez-nous	-
14	7101P010-60		Screw, Control	10	Appelez-nous	-
14	74006332		Thermostat	10	Appelez-nous	-
14	1555280K		Nut & Ferrule 1/4`` Kit	10	Appelez-nous	-
14	74006335		Tubing 3/16	10	Appelez-nous	-
15	74007287		Top, Main (blk)	10	Appelez-nous	-
16	1555279		Nut, 1/4`` Loxit	10	Appelez-nous	-
16	74006333		Valve, Oven	10	Appelez-nous	-
17	74004363		Valve, Burner (frt)	10	Appelez-nous	-
17	12002246		Kit, Valve & Screw (mueller)	11			$ 135.74
17	12002245		Kit, Valve & Screw (mueller)	11			$ 34.28
17	74004362		Valve, Burner (rear)	10	Appelez-nous	-
17	71003231		Screw, Valve	10	Appelez-nous	-
18	3411F003-34		Mixer, Air	10	Appelez-nous	-
NI	74007269		Manual, Use & Care	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
