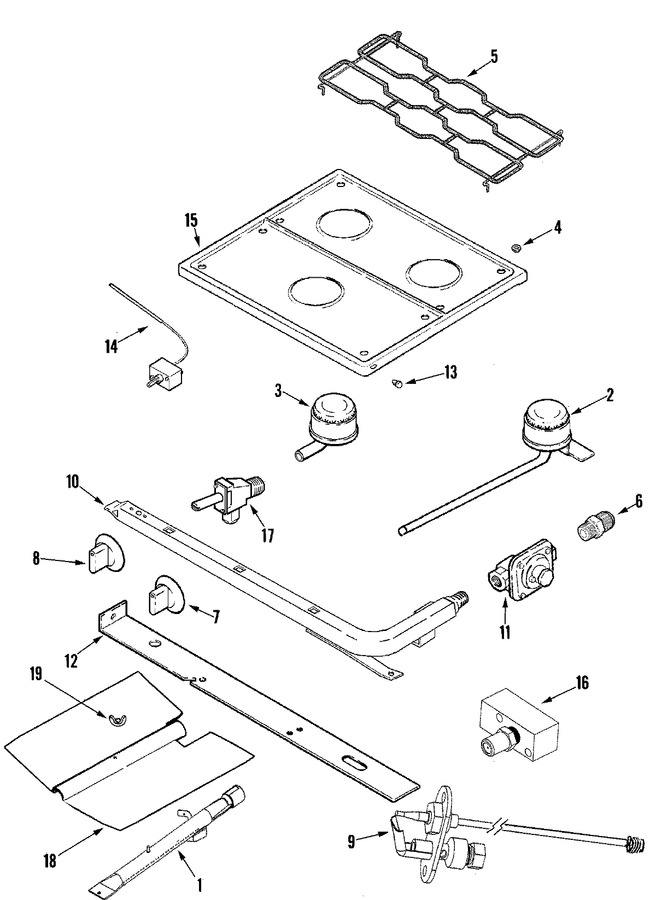

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74009853		Burner, Oven (w/shutter)	10	Appelez-nous	-
2	74004674		Burner, Top (rear)	10	Appelez-nous	-
3	74004675		Burner, Top (frt)	10	Appelez-nous	-
4	Y8007P02060		Grommet	10			$ 5.88
4	WPW10308285		Bushing/washer Asy   (Replaces: 8007P052-60)	10			$ 6.98
5	74007277		Grate (blk)	10	Appelez-nous	-
5	7518P418-60		Grate, Open Bnr (blk)	10			$ 27.99
6	74004234		Fitting, Half Union	10			$ 49.91
7	74003942		Knob, Burner (blk)	10			$ 17.80
7	74003941		Knob, Burner (blk)	10	Appelez-nous	-
8	WP7731P182-60		Knob, Thermostat (blk)   (Replaces: 74009858)	10			$ 6.47
9	1555261K		Nut & Ferrule (3/16``)	10	Appelez-nous	-
9	WP7505P327-60		Burner, Rv Pilot (22)   (Replaces: 74010544)	10			$ 95.00
10	7513P467-60		Pipe, Manifold   (Replaces: 74010755)	11			$ 214.70
10	74009856		Pipe, Manifold	10	Appelez-nous	-
11	74004235		Regulator, Pressure	10	Appelez-nous	-
12	74009851		Support, Oven Burner	10	Appelez-nous	-
13	8003P008-60		Bumper	10	Appelez-nous	-
14	7507P049-60		Flange, T Stat	10	Appelez-nous	-
14	WP7515P046-60		Thermostat   (Replaces: 74009855)	10			$ 269.95
14	74009876		Tubing 3/16 (rv-22)	10			$ 17.22
14	74009877		Tubing 1/4 (rv-22)	10			$ 12.93
15	2001F302-09		Top, Main (blk)	12			$ 162.68
15	74007287		Top, Main (blk)	10	Appelez-nous	-
16	1555279		Nut, 1/4`` Loxit	10	Appelez-nous	-
16	74009864		Elbow Block Assy.	10	Appelez-nous	-
17	12002246		Kit, Valve & Screw (mueller)	10			$ 135.74
17	12002277		Screw, Valve   (Replaces: 74009427)	11			$ 272.78
17	12002245		Kit, Valve & Screw (mueller)	10			$ 34.28
17	74010757		Valve, Top Burner (9100)	11			$ 255.88
17	74010756		Valve, Top Burner (6500)	11			$ 229.94
18	74009848		Baffle, Rv Burner	10	Appelez-nous	-
19	7103P030-60		Nut, Wing	10			$ 6.37

    View Diagram in Separate Window       Print Part List
