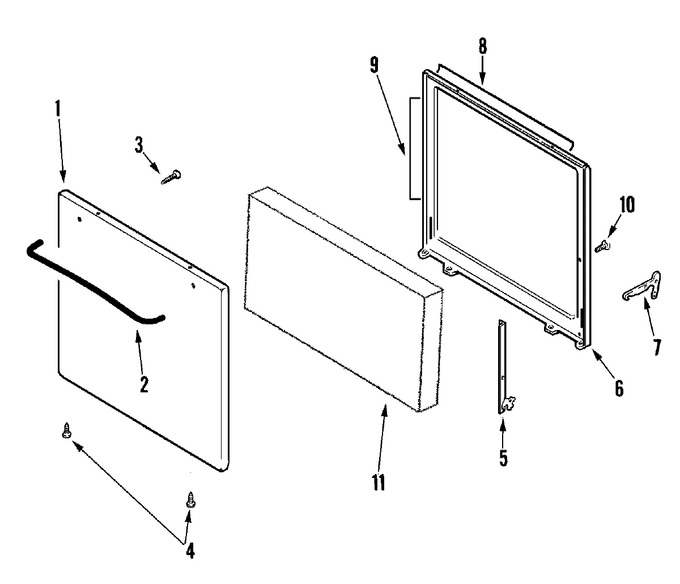

01 - Door


02 - Oven


03 - Top & Gas Controls


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2401F127-71		Panel, Door (wht)	10	Appelez-nous	-
2	74007270		Handle, Door (wht)	10	Appelez-nous	-
3	WP98008544		Screw (1/2``-wht)   (Replaces: 7101P373-60)	10			$ 11.89
4	WP98008544		Screw (1/2``-wht)   (Replaces: 7101P373-60)	10			$ 11.89
5	12400028		Hinge Kit (lt)	10	Appelez-nous	-
5	12400029		Hinge Kit (rt)	10			$ 6.03
6	74004228		Lining, Door	10	Appelez-nous	-
7	3423F001-34		Arm, Spring	10			$ 7.41
8	7212P014-60		Seal, Door (top)	10			$ 48.10
9	7212P039-60		Seal, Door (sides)	10	Appelez-nous	-
10	WPW10068250		Screw 3/8``   (Replaces: 7101P141-60)	10			$ 3.66
11	7002P102-60		Insulation, Oven Door	10	Appelez-nous	-
