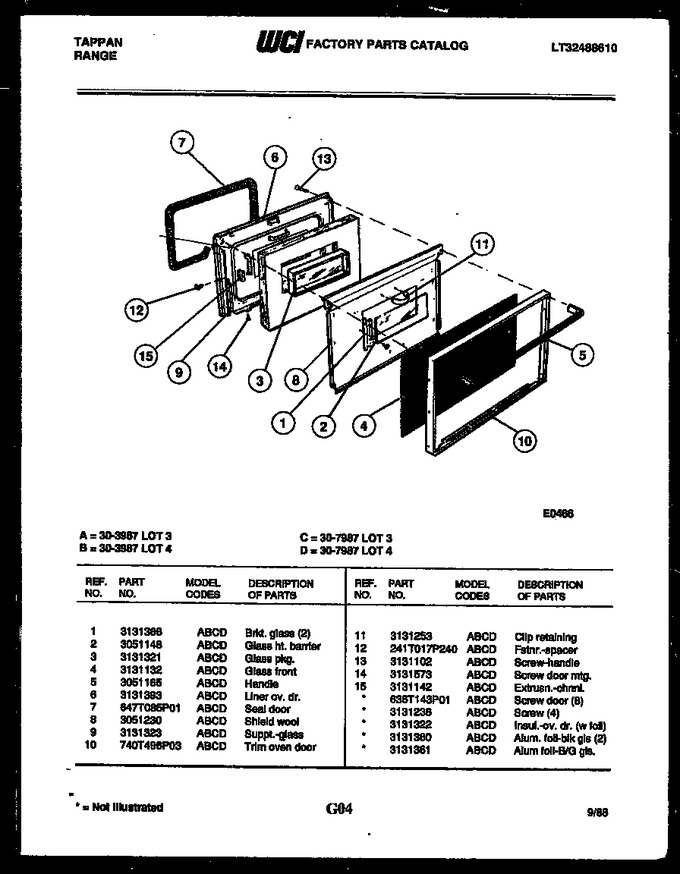

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3131366 | Brkt Glass (2) |
|
- | |||||
| 2 | 3051148 | Glass Ht. Barrier |
|
- | |||||
| 3 | 3131321 | Glass Pkg |
|
- | |||||
| 4 | 3131132 | Glass, Front |
|
- | |||||
| 5 | 3051165 | Handle |
|
- | |||||
| 6 | 3131393 | Liner Ov Dr |
|
- | |||||
| 7 | 647T085P01 | Seal-door |
|
- | |||||
| 8 | 3051230 | Shield, Wool |
|
- | |||||
| 9 | 3131323 | Suppt.-glass |
|
- | |||||
| 10 | 740T496P03 | Trim Oven Door |
|
- | |||||
| 11 | 3131253 | Clip-retaining |
|
- | |||||
| 12 | 241T017P240 | Fstnr.-spacer |
|
- | |||||
| 13 | 3131102 | Screw-handle |
|
- | |||||
| 14 | 3131573 | Screw Door Mtg |
|
- | |||||
| 15 | 3131142 | Extrusn.-chnnl. |
|
- | |||||
| *18474 | 3131360 | Alum. Foil-blkgls. (2) |
|
- | |||||
| *18474 | 636T143P01 | Screw |
|
- | |||||
| *18474 | 3131361 | Alum. Foil-b/g Gls. |
|
- | |||||
| *18474 | 3131322 | Insul Ov Dr W/foil |
|
- | |||||
| *18474 | 3131236 | Screw (4) |
|
- |
