01 - Door

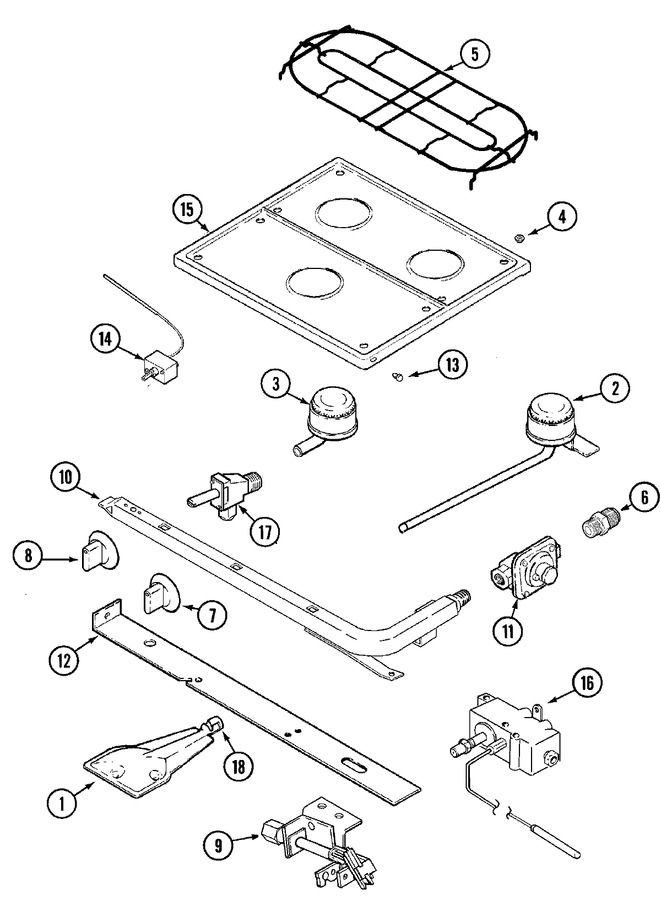

02 - Top & Gas Controls (bdb, Bdt)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74003343 | Burner, Oven | 10 |
|
- | ||||
| 2 | 7505P181-60 | Burner, Top Assy. (rear) | 10 |
|
- | ||||
| 3 | 7505P142-60 | Burner, Assy Front | 10 |
|
- | ||||
| 4 | Y8007P02060 | Grommet | 10 |
|
$ 5.88 | ||||
| 5 | 74003358 | Grate, Top | 10 |
|
- | ||||
| 6 | 74004234 | Fitting, Half Union | 10 |
|
$ 49.91 | ||||
| 7 | 7733P072-60 | Knob, Valve | 10 |
|
- | ||||
| 7 | 74001794 | Knob, Valve | 10 |
|
- | ||||
| 8 | 74004359 | Knob, Thermostat (blk) | 10 |
|
- | ||||
| 9 | 1555261K | Nut & Ferrule (3/16``) | 10 |
|
- | ||||
| 9 | 74006334 | Pilot, Oven | 11 |
|
$ 12.79 | ||||
| 9 | 74004586 | Pilot, Oven | 10 |
|
- | ||||
| 10 | 74004360 | Pipe, Manifold | 10 |
|
- | ||||
| 11 | 74004235 | Regulator, Pressure | 10 |
|
- | ||||
| 12 | 74001834 | Support, Oven Burner | 10 |
|
- | ||||
| 13 | 8003P008-60 | Bumper | 10 |
|
- | ||||
| 14 | 74006336 | Tubing 3/16 | 11 |
|
- | ||||
| 14 | 74002279 | Tubing (3/16`` X 44``) | 10 |
|
- | ||||
| 14 | 74006332 | Thermostat | 11 |
|
- | ||||
| 14 | 1555222 | Nut, Loxit (3/16``) | 10 |
|
- | ||||
| 14 | 1555280K | Nut & Ferrule 1/4`` Kit | 10 |
|
- | ||||
| 14 | 74006338 | Tubing 1/4 | 11 |
|
- | ||||
| 14 | 74002278 | Tubing (1/4`` X 43``) | 10 |
|
- | ||||
| 14 | 74004361 | Thermostat | 10 |
|
- | ||||
| 15 | 74005204 | Top, Main (bsq) | 10 |
|
- | ||||
| 16 | 74004585 | Valve, Oven | 10 |
|
- | ||||
| 16 | 74006333 | Valve, Oven | 11 |
|
- | ||||
| 16 | 1555279 | Nut, 1/4`` Loxit | 10 |
|
- | ||||
| 17 | 74004362 | Valve, Burner (rear) | 10 |
|
- | ||||
| 17 | 74004363 | Valve, Burner (frt) | 10 |
|
- | ||||
| 18 | 3411F003-34 | Mixer, Air | 10 |
|
- | ||||
| NI | 74003355 | Manual, Use & Care | 10 |
|
- |
