SELECT A DIAGRAM
01 - Gas Controls

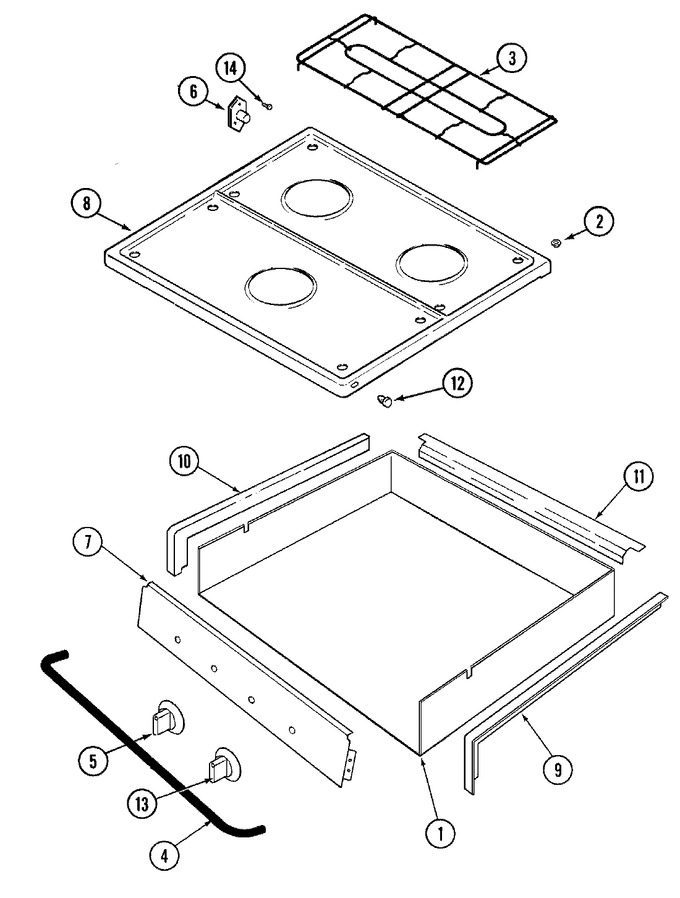

02 - Top & Burner Box
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4011W174-51 | Box, Burner Assy | 10 |
|
- | ||||
| 2 | Y8007P02060 | Grommet | 10 |
|
$ 5.88 | ||||
| 3 | 7518P012-60 | Grate, Top | 10 |
|
- | ||||
| 4 | 3609F006-70 | Guard, Fabric | 10 |
|
- | ||||
| 5 | 7733P072-60 | Knob, Valve | 10 |
|
- | ||||
| 5 | 74001794 | Knob, Valve | 10 |
|
- | ||||
| 6 | 7103P109-60 | T-nut (rv Hinge) | 10 |
|
- | ||||
| 7 | 2616F114-70 | Panel, Manifold | 10 |
|
- | ||||
| 8 | 74003322 | Top, Main (wht) | 10 |
|
- | ||||
| 9 | 74002839 | Trim (rt-blk) | 10 |
|
- | ||||
| 10 | 74002840 | Trim (lt-blk) | 10 |
|
- | ||||
| 11 | 74002841 | Trim, Rear (blk) | 10 |
|
- | ||||
| 12 | 8003P008-60 | Bumper | 10 |
|
- | ||||
| 13 | WP74002414 | Knob, Igniter (Replaces: 74002414) | 10 |
|
$ 15.72 | ||||
| 14 | 7101P301-60 | Screw No.6 X 1/2 | 10 |
|
- | ||||
| NI | 74002262 | Manual, Use & Care | 10 |
|
- | ||||
| NI | 16000329 | Guide, Quick Ref. - Magic Chef | 10 |
|
- |
