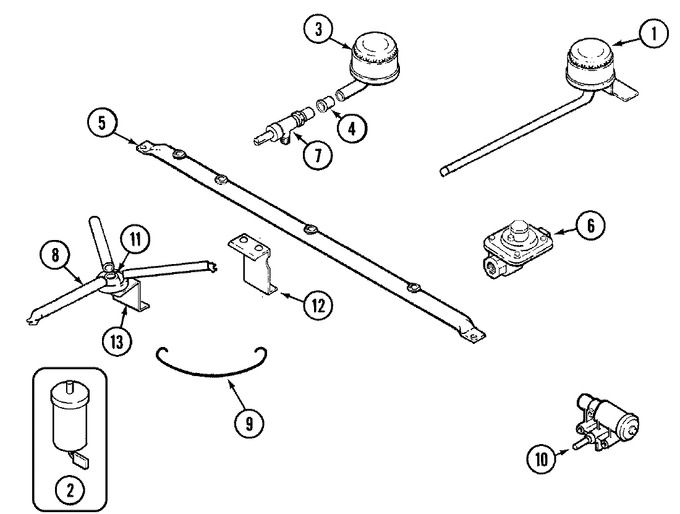

01 - Gas Controls
02 - Top & Burner Box
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7505P195-60 | Burner Rear (rt) | 10 |
|
- | ||||
| 1 | 74004583 | Burner, Top (r.r.) | 12 |
|
$ 132.80 | ||||
| 1 | 74004584 | Burner, Top (l.r.) | 12 |
|
- | ||||
| 1 | 7505P196-60 | Burner Rear (lf) | 10 |
|
- | ||||
| 2 | 7432P077-60 | Igniter, Top | 10 |
|
$ 26.53 | ||||
| 2 | 7104P002-60 | Fastener, Push Ring Rv | 10 |
|
- | ||||
| 3 | 74004582 | Burner, Top (frt) | 12 |
|
$ 54.35 | ||||
| 3 | 7505P144-60 | Burner, Assy Front | 10 |
|
- | ||||
| 4 | 7214P015-60 | Insert, Burner | 10 |
|
- | ||||
| 5 | 7507P047-60 | Plug, Pipe | 10 |
|
- | ||||
| 5 | 74004642 | Pipe, Manifold | 11 |
|
- | ||||
| 5 | 7513P161-60 | Pipe, Manifold | 10 |
|
- | ||||
| 6 | 7510P043-60 | Regulator, Pressure | 10 |
|
- | ||||
| 6 | 74004235 | Regulator, Pressure | 11 |
|
- | ||||
| 6 | 7507P083-60 | Fitting, Half Union | 10 |
|
- | ||||
| 7 | 74004362 | Valve, Burner (rear) | 11 |
|
- | ||||
| 7 | 74003349 | Valve, Burner | 10 |
|
- | ||||
| 7 | 74003348 | Valve, Burner | 10 |
|
- | ||||
| 7 | 74004363 | Valve, Burner (frt) | 11 |
|
- | ||||
| 8 | 74003326 | Extension, Flashtube (rear) | 10 |
|
$ 5.84 | ||||
| 8 | 74003327 | Extension, Flashtube (frt) | 10 |
|
$ 5.84 | ||||
| 9 | 7112P068-60 | Clip | 10 |
|
- | ||||
| 10 | 5111A719-60 | Wire, Igniter | 10 |
|
$ 5.85 | ||||
| 10 | 74002413 | Igniter | 10 |
|
$ 160.72 | ||||
| 11 | 74003325 | Cup/tube Assy. | 10 |
|
- | ||||
| 12 | 3604F211-45 | Shield | 10 |
|
- | ||||
| 13 | 3807F462-45 | Support, Top Burner | 10 |
|
- | ||||
| NI | 74004234 | Fitting, Half Union | 11 |
|
$ 49.91 |
