SELECT A DIAGRAM

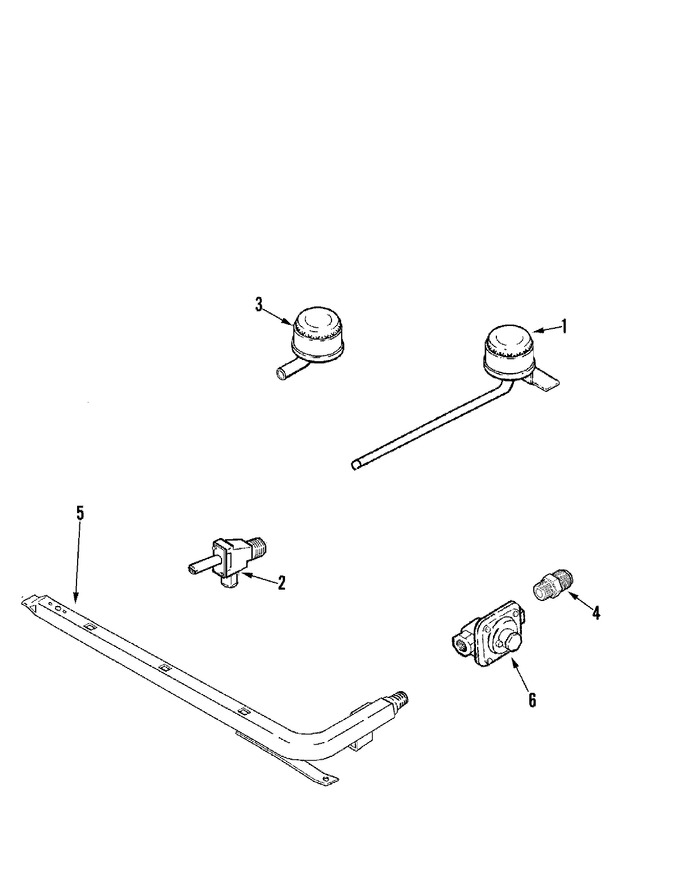

01 - Gas Controls


02 - Top & Burner Box


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74004584		Burner, Top (l.r.)	10	Appelez-nous	-
1	74004583		Burner, Top (r.r.)	10			$ 132.80
2	74010757		Valve, Top Burner (9100)	13			$ 255.88
2	74010756		Valve, Top Burner (6500)	13			$ 229.94
2	12002277		Screw, Valve   (Replaces: 74009427)	11			$ 272.78
2	74009426		Valve, Burner (mueller)	11	Appelez-nous	-
2	74009425		Valve, Burner (mueller)	11	Appelez-nous	-
2	74004363		Valve, Burner (frt)	10	Appelez-nous	-
2	74004362		Valve, Burner (rear)	10	Appelez-nous	-
2	71003231		Screw, Valve	10	Appelez-nous	-
3	74004582		Burner, Top (frt)	10			$ 54.35
4	74004234		Fitting, Half Union	10			$ 49.91
5	7513P476-60		Pipe, Manifold (rv)   (Replaces: 74011041)	13	Appelez-nous	-
5	74004642		Pipe, Manifold	10	Appelez-nous	-
6	74004235		Regulator, Pressure	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
