SELECT A DIAGRAM
01 - Gas Controls
02 - Top & Burner Box
New Model Search:

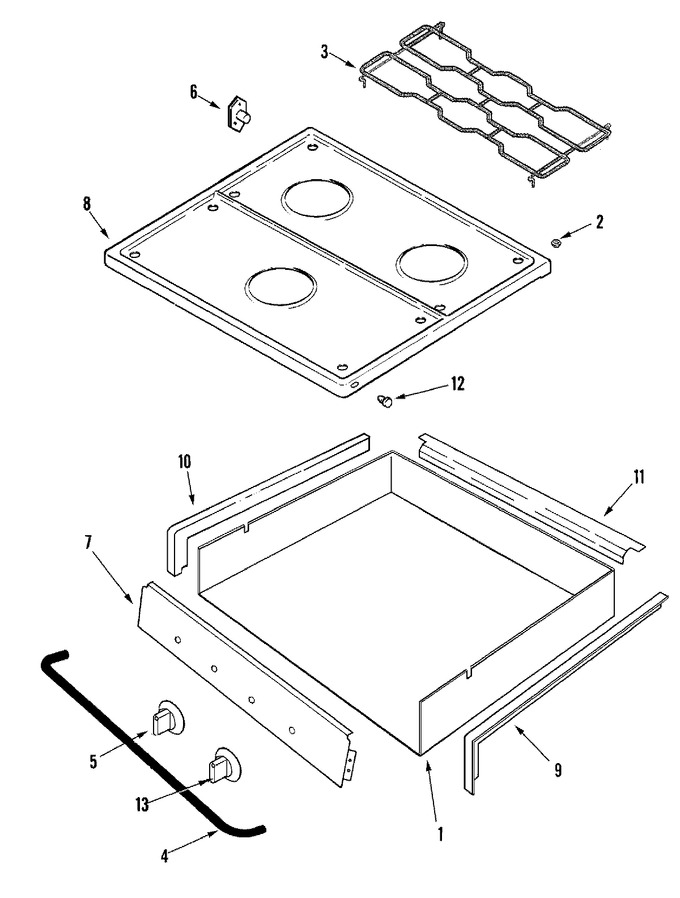

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74005024 | Box, Burner Asy | 10 |
|
- | ||||
| 2 | Y8007P02060 | Grommet | 10 |
|
$ 5.88 | ||||
| 3 | 74007278 | Grate (gry) | 10 |
|
- | ||||
| 4 | 74007328 | Guard, Fabric (wht) | 10 |
|
- | ||||
| 5 | 74007280 | Knob, Burner (wht) | 10 |
|
- | ||||
| 5 | 74007281 | Knob, Burner (wht) | 10 |
|
- | ||||
| 6 | 7103P109-60 | T-nut (rv Hinge) | 10 |
|
- | ||||
| 6 | 7101P301-60 | Screw No.6 X 1/2 | 10 |
|
- | ||||
| 7 | 74007326 | Panel, Manifold (wht) | 10 |
|
- | ||||
| 8 | 74003322 | Top, Main (wht) | 10 |
|
- | ||||
| 9 | 74007319 | Trim (rt-wht) | 10 |
|
- | ||||
| 10 | WP98008544 | Screw (1/2``-wht) (Replaces: 7101P373-60) | 10 |
|
$ 11.89 | ||||
| 10 | 74007320 | Trim (lt-wht) | 10 |
|
- | ||||
| 11 | 74007323 | Trim, Rear (wht) | 10 |
|
- | ||||
| 12 | 8003P008-60 | Bumper | 10 |
|
- | ||||
| 13 | 74007292 | Knob, Igniter (wht) | 10 |
|
$ 15.55 | ||||
| NI | 74007269 | Manual, Use & Care | 10 |
|
- |
