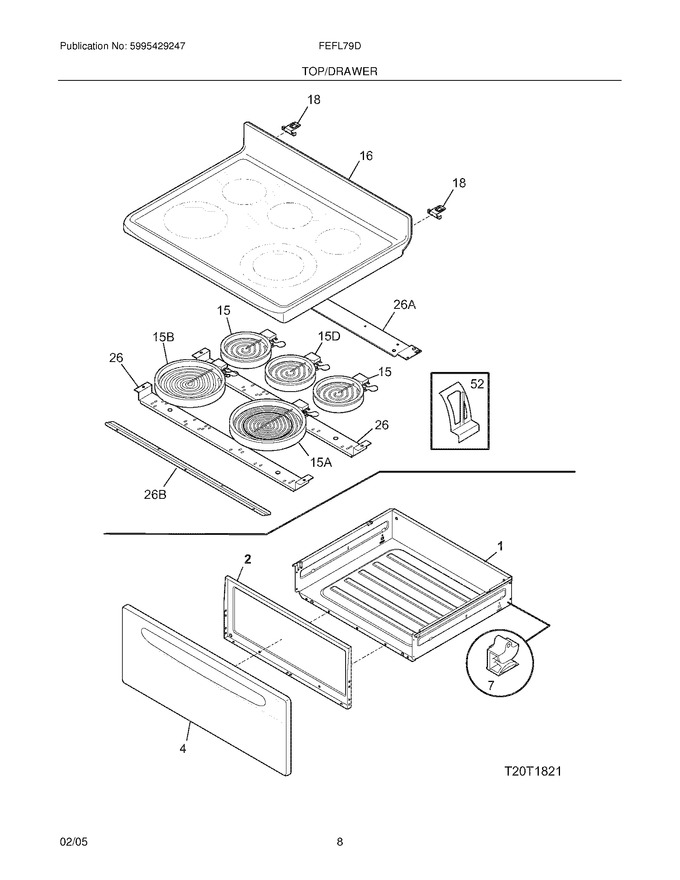

SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer,utility   (Replaces: 316408701)			Immediately	$ 110.61
2	5304527989		Liner,drawer   (Replaces: 316403300)				$ 28.83
4	316403503		Panel,drawer Front ,bisque		Appelez-nous	-
7	316407402		Glide,drawer ,rear   (Replaces: 316407400)			Immediately	$ 9.86
16	316421252		Maintop,frame/glass ,bisque/black		Appelez-nous	-
18	316436600		Hinge Bracket,maintop ,(2)				$ 45.36
26	316427600		Channel,element Support ,(2)		Appelez-nous	-
52	316278300		Clip,element Mtg		Appelez-nous	-
26A	316099202		Bracket,chassis Support ,rear		Appelez-nous	-
26B	316214200		Bracket,chassis Support ,front		Appelez-nous	-
F15	318198817		Element,surface ,6`` ,1200 W ,radiant   (Replaces: 316010205)			Immediately	$ 192.78
F15A	316555800		Element,dual ,6``/9`` ,surface ,1200w/1300w,radiant   (Replaces: 316418400)			Immediately	$ 138.90
F15B	316135401		Element,surface ,9`` ,2500w ,radiant   (Replaces: 316224200)			Immediately	$ 80.96
F15D	318198816		Element,surface ,warmer ,100 W		Appelez-nous	-
NI	316264000		Cleaner,cooktop		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5308014215		Screw`6-20 X 0.312				$ 2.28
NI	316416832		Harness,wiring ,surface		Appelez-nous	-
