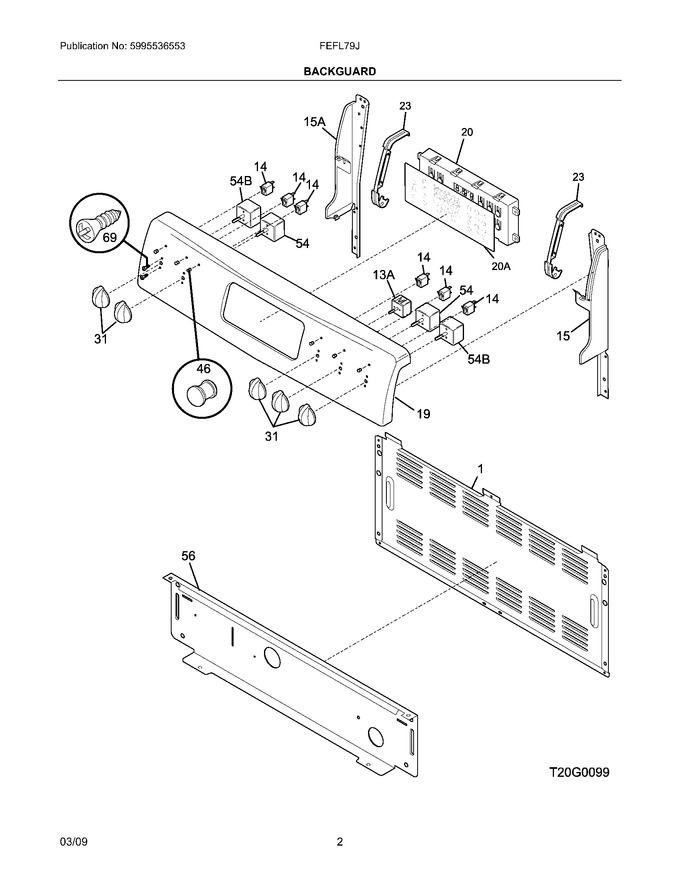

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield,backguard ,rear Wall   (Replaces: 316416100)				$ 57.64
14	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 53.57
15	316411407		Support,backguard ,bisque ,rh		Appelez-nous	-
19	316436267		Panel,control ,bisque		Appelez-nous	-
23	316419200		Bracket,clock ,(2)		Appelez-nous	-
31	316223003		Knob,control ,bisque				$ 48.20
46	316557300		Lens-light/lamp,indicator ,clear			Immediately	$ 16.77
56	316234014		Shield,backguard ,bisque ,inner		Appelez-nous	-
69	5303288565		Screw,truss Sqdr `8-32 X 3/16 ,switch Mtg				$ 3.12
15A	316411406		Support,backguard ,bisque ,lh				$ 90.30
20A	316419706		Overlay,clock ,bisque ,es510l		Appelez-nous	-
F13A	5304508926		Switch,infinite ,warmer   (Replaces: 316095503)			Immediately	$ 84.18
F20	316462868		Clock/timer,electronic ,es530				$ 352.77
F54	316436000		Switch,infinite ,small Element			Immediately	$ 80.34
F54B	316238201		Switch,infinite Radian ,dual   (Replaces: 316238200)			Immediately	$ 89.00
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
