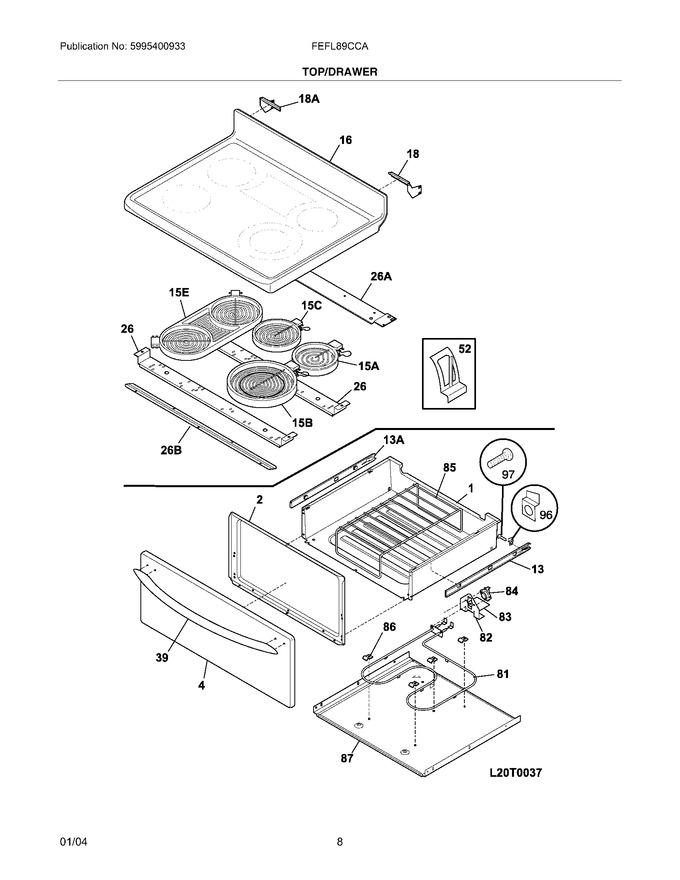

07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316115901		Drawer,warmer		Appelez-nous	-
2	316231503		Liner,drawer		Appelez-nous	-
4	316248801		Panel,drawer ,stainless		Appelez-nous	-
13	316231700		Glide,drawer ,rh Inner				$ 61.91
16	316251952		Main Top Assy,glass/steel ,black		Appelez-nous	-
18	316235900		Hinge,main Top ,rh		Appelez-nous	-
26	316230202		Channel,element Support ,(2)		Appelez-nous	-
39	316203000		Handle,door ,black		Appelez-nous	-
52	316099400		Clip,element Mtg				$ 29.56
82	316093200		Bracket,element Mtg		Appelez-nous	-
83	316093300		Shield,terminal ,warmer Drawer		Appelez-nous	-
84	316093501		Thermo Disc,warmer Drawer				$ 107.10
85	807328301		Rack, Warmer Drawer   (Replaces: 316093600)				$ 87.21
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	316091900		Base,warmer Drawer				$ 221.55
96	316122000		Clip-lock, Warmer Drawer				$ 14.12
97	316003802		Screw-hex Hd 3/16``, 6 X 3/8				$ 8.82
13A	316231701		Glide,drawer ,lh Inner				$ 65.73
18A	316235901		Hinge,main Top ,lh		Appelez-nous	-
26A	316099202		Bracket,chassis Support ,rear		Appelez-nous	-
26B	316214200		Bracket,chassis Support ,front		Appelez-nous	-
F15A	318198817		Element,surface ,6`` ,1200 W ,radiant   (Replaces: 316010205)			Immediately	$ 192.78
F15B	316555800		Element,dual ,6``/9`` ,surface ,1000w/2500w,radiant   (Replaces: 316224300)			Immediately	$ 138.90
F15C	316098202		Element,warmer Zone ,100w				$ 473.08
F15E	316280701		Element,double 6`` ,surface ,4400 W ,w/bridge   (Replaces: 316235301)				$ 273.34
F81	316437300		Element,warmer Drawer   (Replaces: 316239201)				$ 106.17
NI	5308014215		Screw`6-20 X 0.312				$ 2.28
NI	316001917		Harness-warmer Drawer				$ 66.31
NI	316253603		Harness,warmer Drawer ,main				$ 139.70
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	316264000		Cleaner,cooktop		Appelez-nous	-
NI	316253520		Wiring Harness,surface Element		Appelez-nous	-
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312				$ 6.62
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
