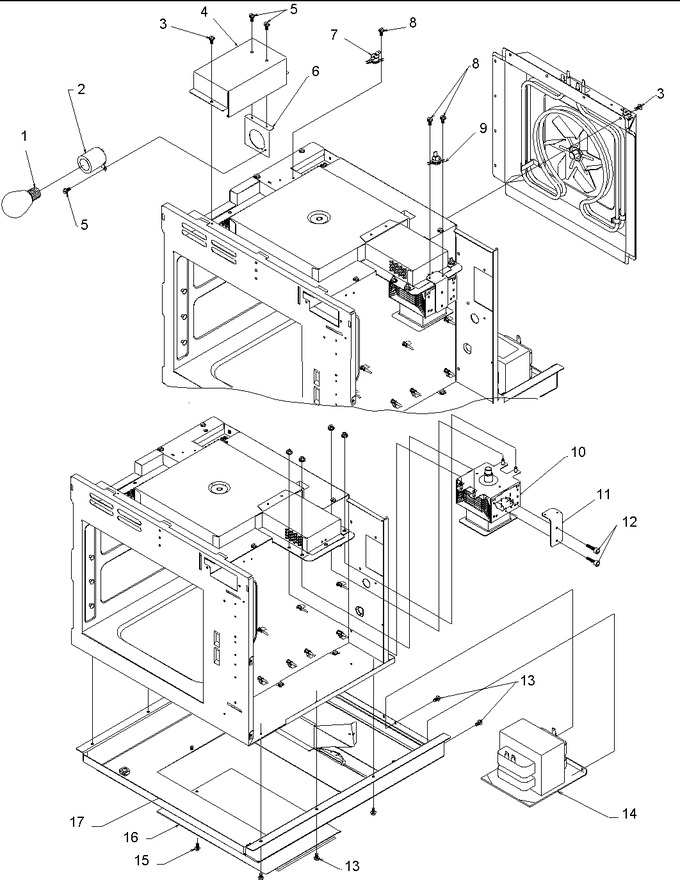

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP67002552 | Bulb, Light(240) (Replaces: A0282802) |
|
Immediately | $ 10.58 | ||||
| 2 | 12027401 | Receptacle-lamp |
|
- | |||||
| 4 | 10999602 | Brkt-lamp Cover |
|
- | |||||
| 6 | 10978501 | Retainer, Light |
|
- | |||||
| 7 | B5684102 | Thermal Protector |
|
- | |||||
| 8 | M0232012 | Screw |
|
- | |||||
| 9 | B5684119 | Cutout-thermal |
|
- | |||||
| 10 | 10489402 | Magnetron-t |
|
- | |||||
| 11 | 10999501 | Brkt-tco Mtg |
|
- | |||||
| 12 | M0229916 | Screw T.c |
|
- | |||||
| 14 | 10788602 | Transformer-hv |
|
- | |||||
| 16 | 10782402 | Bottom Access Panel |
|
- | |||||
| 17 | R0150116 | Assy, Base Pan & Gaskets |
|
- |
