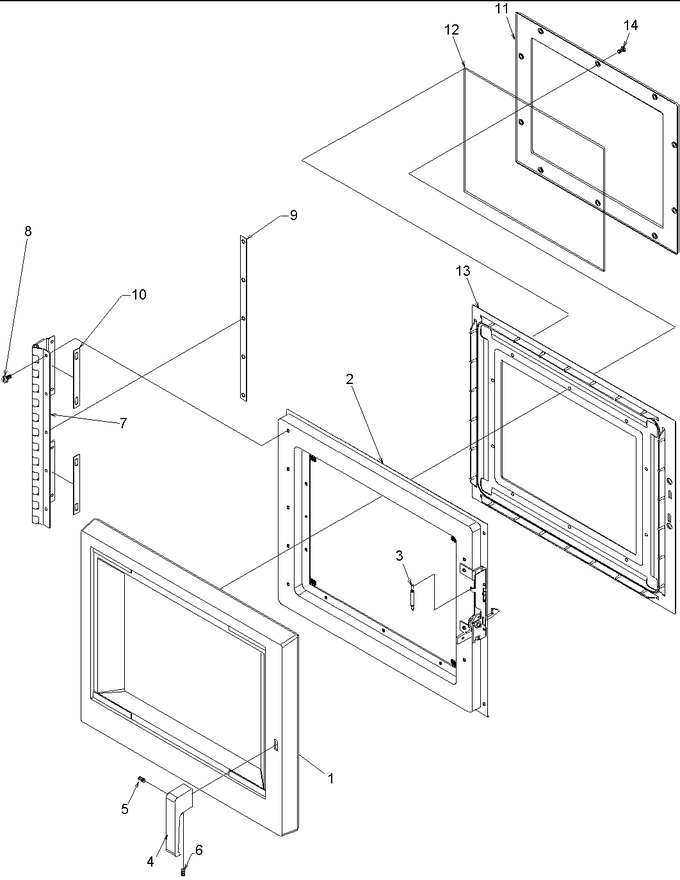

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | R0150113 | Assy, Outer Door |
|
- | |||||
| 2 | R0156922 | Door Assy |
|
- | |||||
| 3 | C8893502 | Spring, Door Latch |
|
- | |||||
| 4 | 10822301 | Handle, Door |
|
- | |||||
| 5 | 5051032202 | Set Screw No.10 X .25 |
|
- | |||||
| 6 | M0208342 | Screw, Set |
|
- | |||||
| 7 | C8961805 | Hinge-door |
|
- | |||||
| 8 | WP3388228 | Screw Xxx (Replaces: M0216703) |
|
$ 6.26 | |||||
| 9 | 12083101 | Gasket |
|
- | |||||
| 10 | 12083001 | Gasket |
|
- | |||||
| 11 | 12022401 | Retainer-glass |
|
- | |||||
| 12 | C8960501 | Window, Inner |
|
- | |||||
| 13 | 12022601 | Cover-choke W/gskt |
|
- | |||||
| 14 | M0238420 | Screw-sm |
|
- |
