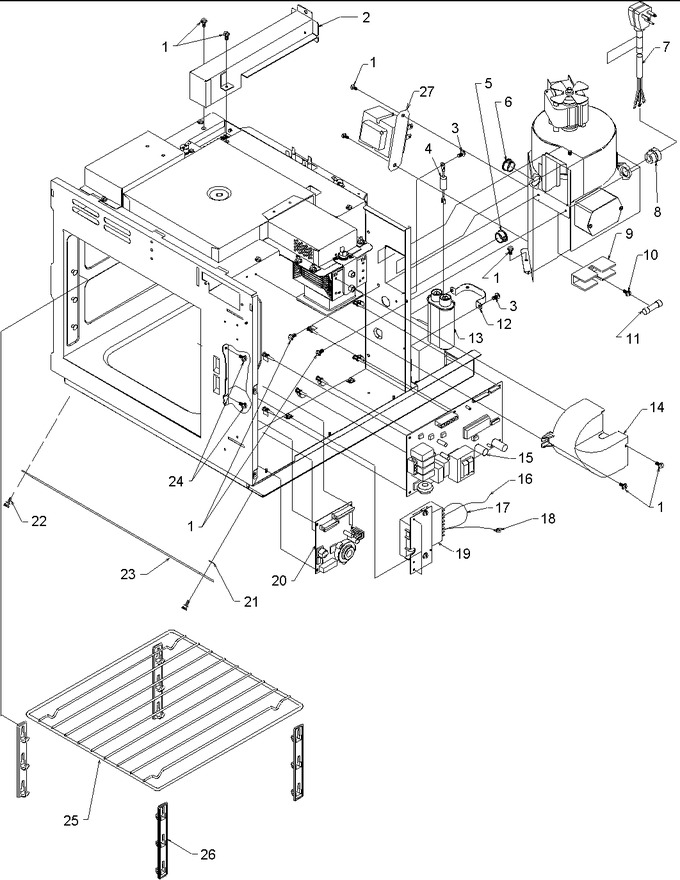

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP90767 | Screw (Replaces: M0211216) |
|
Immediately | $ 7.04 | ||||
| 2 | 12002901 | Flue Duct Weld |
|
- | |||||
| 3 | M0231704 | Screw, Tf |
|
- | |||||
| 4 | WP13091701 | Rectifier (Replaces: B8383102) |
|
$ 31.71 | |||||
| 5 | M0571001 | Snap Bushing |
|
- | |||||
| 6 | M0571003 | Bushing-snap |
|
- | |||||
| 7 | 10098908 | Power Cord |
|
- | |||||
| 8 | M0370011 | Relief-strain |
|
- | |||||
| 9 | 10091101 | Fuse Holder |
|
- | |||||
| 10 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 11 | 14QBP25BAN | Fuse, 25 Amp (Replaces: M0805201) |
|
- | |||||
| 12 | A4055405 | Strap, Capacitor |
|
- | |||||
| 13 | D8547936 | Capacitor |
|
- | |||||
| 14 | 12018101 | Duct-mag/wvgd |
|
- | |||||
| 15 | R9800032 | Hv Board |
|
- | |||||
| 16 | 10901307 | Wire, Jumper |
|
- | |||||
| 17 | 10901308 | Wire, Jumper |
|
- | |||||
| 18 | 10901306 | Wire, Jumper |
|
- | |||||
| 19 | R0150155 | Kit, Interlock |
|
- | |||||
| 20 | 12305804 | Board, P.c. |
|
- | |||||
| 21 | M0274066 | Washer, Nylon |
|
- | |||||
| 22 | M0209701 | Screw, Decorative |
|
- | |||||
| 23 | 10853102 | Grille, Air Inlet |
|
- | |||||
| 24 | M0253504 | Screw |
|
- | |||||
| 25 | 12233301 | Rack, Oven |
|
- | |||||
| 26 | 12029301 | Hook-rack |
|
- | |||||
| 27 | C8901507 | Transformer, Auto |
|
- | |||||
| NI | 12029501 | Harness-lvb/hvb |
|
- |
