SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

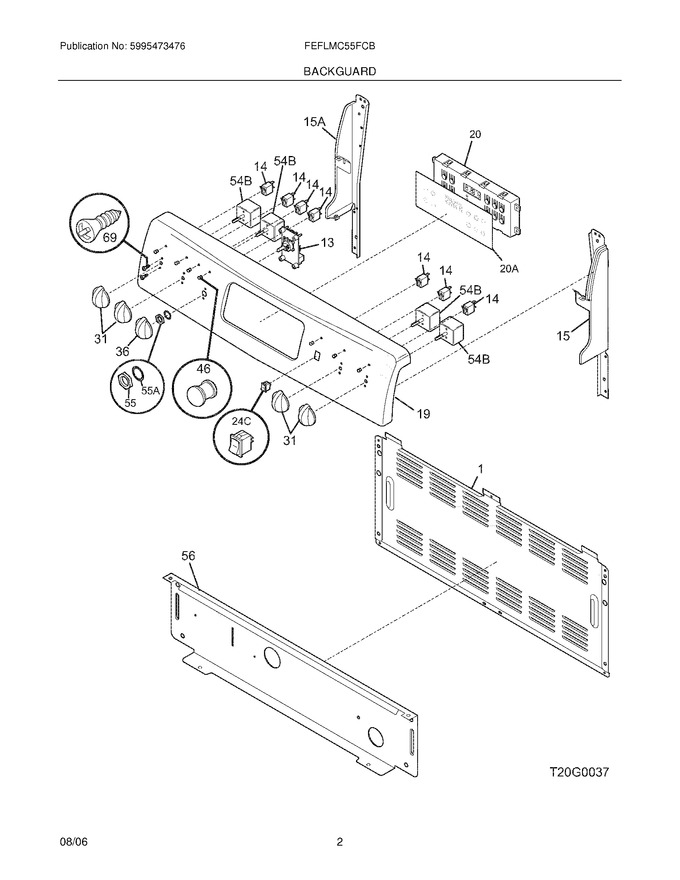

1	316281802		Shield,backguard ,rear Wall   (Replaces: 316416100)				$ 57.64
13	316414400		Control,bake ,mini Oven				$ 282.50
14	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 53.57
15	316411405		Support,backguard ,black ,rh				$ 83.95
19	316424164		Panel,control ,stainless		Appelez-nous	-
31	316223002		Knob,control ,black			Immediately	$ 57.64
36	316223019		Knob,control ,black				$ 45.65
46	316040201		Lens,indicator Light ,red		Appelez-nous	-
55	316247700		Nut,mounting ,(2)				$ 18.20
56	316234045		Shield,backguard ,black ,inner   (Replaces: 316234013)				$ 66.74
69	5303288565		Screw,truss Sqdr `8-32 X 3/16 ,switch Mtg				$ 3.12
15A	316411404		Support,backguard ,black ,lh				$ 83.95
20A	316419303		Overlay,clock ,black ,es340			Immediately	$ 51.03
24C	316259800		Switch-rocker,black				$ 36.21
55A	316247800		Washer-lock,control Mtg				$ 18.20
F20	316418305		Clock/timer,electronic ,es340		Appelez-nous	-
F54B	316238201		Switch,infinite ,dual Element   (Replaces: 316238200)			Immediately	$ 89.00
NI	316416906		Harness,mini Oven Cntl		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
