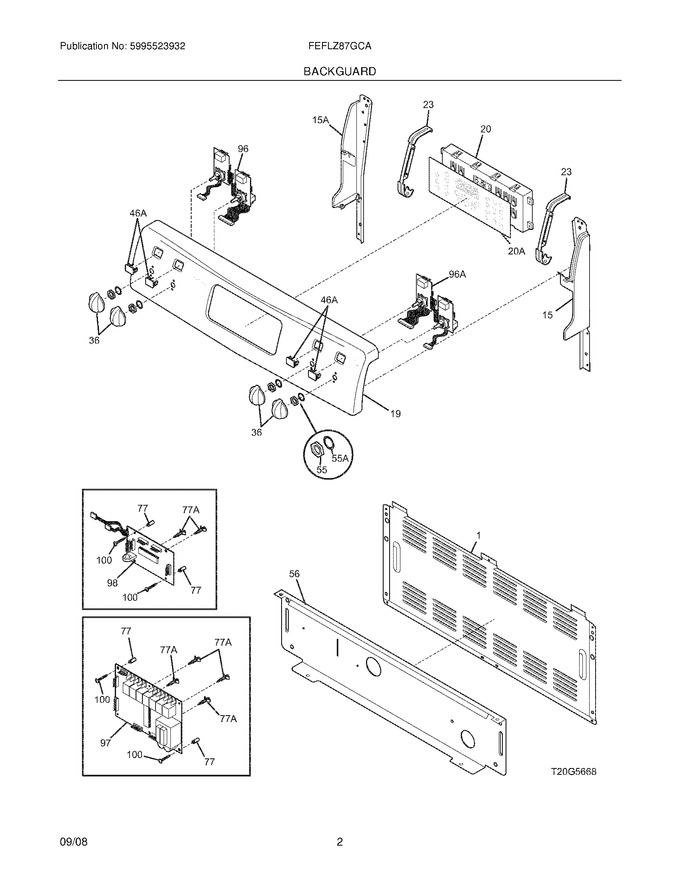

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield,backguard ,rear Wall   (Replaces: 316416100)				$ 57.64
15	316411405		Support,backguard ,black ,rh				$ 83.95
19	316436283		Panel,control ,alum		Appelez-nous	-
23	316419200		Bracket,clock ,(2)		Appelez-nous	-
36	316223019		Knob,control ,black				$ 45.65
55	316247700		Nut,mounting ,(2)				$ 18.20
56	316234045		Shield,backguard ,black ,inner   (Replaces: 316234013)				$ 66.74
77	316247900		Spacer,power Board				$ 44.65
96	316445610		Board,display ,lh Controls ,2 ,potentiometers		Appelez-nous	-
97	316442101		Board,power ,relay				$ 323.77
98	316442001		Board,rotary ,uib				$ 230.74
100	5303289910		Screw,8a ,1`` ,(7) ,power Board Mtg				$ 5.67
15A	316411404		Support,backguard ,black ,lh				$ 83.95
20A	316419704		Overlay,clock ,black ,es510				$ 63.70
46A	316448000		Lens,led Display				$ 29.51
55A	316247800		Washer,lock ,mtg				$ 18.20
77A	316114100		Spacer,(4)				$ 60.96
96A	316445611		Board,display ,rh Controls ,2 ,potentiometers		Appelez-nous	-
F20	316418707		Clock/timer,electronic ,es510				$ 298.52
NI	316416916		Harness,main Control				$ 167.79
NI	316416923		Harness,control Board ,to Uib				$ 31.55
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
