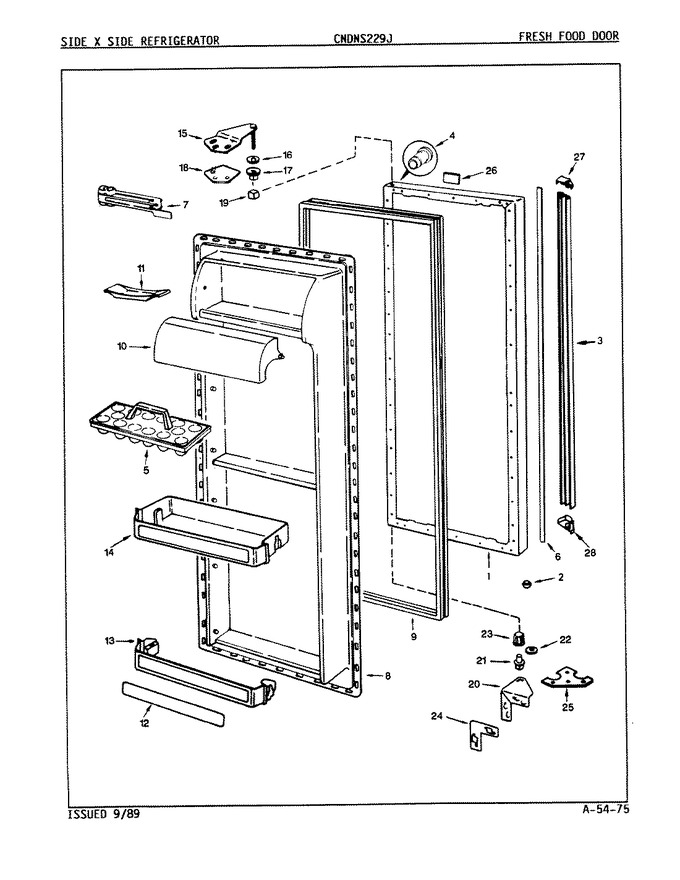

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	55587-26-AM		Outer Panel		Appelez-nous	-
2	495034-900		Plug Button, Door		Appelez-nous	-
3	56835-39		Handle		Appelez-nous	-
4	65003-3		Cover, Upper Hinge (alm)		Appelez-nous	-
4	68381-1		Retainer, Nameplate Bezel		Appelez-nous	-
5	60066-9		Tray, Egg		Appelez-nous	-
6	65772-27		Trim		Appelez-nous	-
7	54485-1		Closer, Door		Appelez-nous	-
7	52613-1		Insulation, Closer		Appelez-nous	-
7	52614-1		Bracket, Closer		Appelez-nous	-
8	65943-11		Liner, Door		Appelez-nous	-
8	65275-5		Screw		Appelez-nous	-
9	53712-2		Gasket		Appelez-nous	-
10	66184-446		Door, Dairy		Appelez-nous	-
11	29936-2		Tray, Butter		Appelez-nous	-
12	68121-34		Insert		Appelez-nous	-
13	65781-6		Shelf Front		Appelez-nous	-
14	65782-6		Shelf, Pick-off		Appelez-nous	-
15	53709-16		Upper Hinge,(chrome)		Appelez-nous	-
15	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
16	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
17	66036-2		Bushing, Upper Hinge		Appelez-nous	-
18	65031-1		Shim, Upper Hinge		Appelez-nous	-
20	403062-5		Screw		Appelez-nous	-
20	60630-12		Hinge, Lower		Appelez-nous	-
21	53672-1		Pin, Lower Hinge		Appelez-nous	-
22	54233-1		Washer				$ 7.71
23	66034-1		Bushing, Lower Hinge				$ 19.76
24	62626-1		Spacer, Mtg Lower Hinge		Appelez-nous	-
25	65964-1		Tapping Plate, Lower Hinge		Appelez-nous	-
26	66986-2		Bezel, Nameplate		Appelez-nous	-
27	57947-1		End Cap		Appelez-nous	-
28	420063-1		Washer		Appelez-nous	-
28	57947-2		End Cap		Appelez-nous	-
28	402100-1		Screw		Appelez-nous	-
28	402077-7		Screw		Appelez-nous	-
