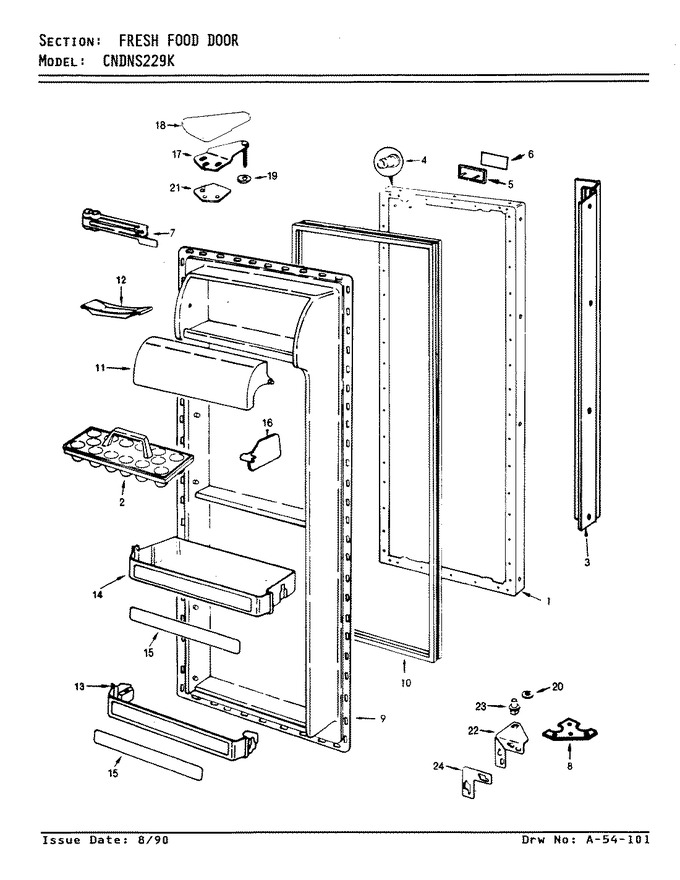

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68459-7-AM		Panel, Outer Door		Appelez-nous	-
1	RA95060-1		Insulation Kit		Appelez-nous	-
2	60066-9		Tray, Egg		Appelez-nous	-
3	66799-1		Achor, Screw		Appelez-nous	-
3	65275-37		Screw, Handle		Appelez-nous	-
3	68661-2		Door Handle		Appelez-nous	-
4	29356-1		Retainer, Nameplate		Appelez-nous	-
5	66986-4		Bezel, Nameplate		Appelez-nous	-
6	66982-4		Bezel, Nameplate		Appelez-nous	-
7	52614-1		Bracket, Closer		Appelez-nous	-
7	52613-1		Insulation, Closer		Appelez-nous	-
7	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
7	54485-1		Closer, Door		Appelez-nous	-
8	65964-2		Tapping Plate		Appelez-nous	-
9	9986-12		Screw,door Liner		Appelez-nous	-
9	65943-7		Liner, Door		Appelez-nous	-
10	53712-16		Gasket		Appelez-nous	-
11	66184-446		Door, Dairy		Appelez-nous	-
12	29936-2		Tray, Butter		Appelez-nous	-
13	65781-6		Shelf Front		Appelez-nous	-
14	65782-6		Shelf, Pick-off		Appelez-nous	-
15	68121-34		Insert		Appelez-nous	-
16	65275-38		Screw		Appelez-nous	-
16	66645-6		Organizer Package		Appelez-nous	-
17	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
17	53709-22		Hinge, Upper		Appelez-nous	-
18	65003-3		Cover, Upper Hinge (alm)		Appelez-nous	-
19	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
20	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
21	65031-1		Shim, Upper Hinge		Appelez-nous	-
22	67714-10		Hinge, Lower		Appelez-nous	-
22	403100-801		Screw		Appelez-nous	-
23	68788-1		Hinge Pin		Appelez-nous	-
24	60626-1		Shim, Lower Hinge		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
