SELECT A DIAGRAM

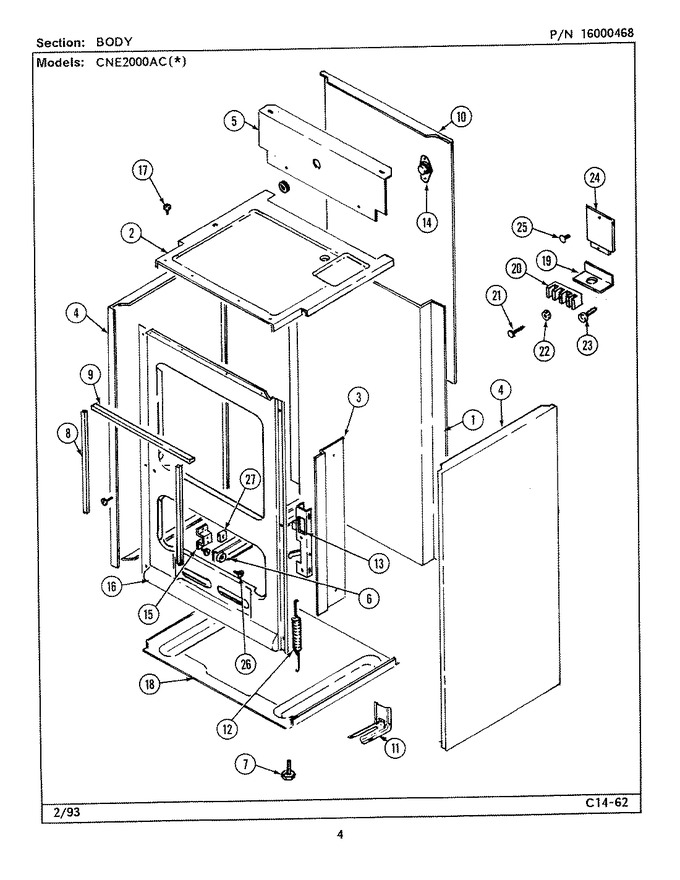

01 - Body
02 - Door/drawer
03 - Oven
04 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F120-80 | Back Main | 10 |
|
- | ||||
| 2 | 4011F150-80 | Bottom Burner Box | 10 |
|
- | ||||
| 3 | 3818F041-51 | Channel, Air Chute | 10 |
|
- | ||||
| 4 | 2618F070-74 | Panel, Side (alm) | 10 |
|
- | ||||
| 5 | 3604F145-51 | Shield, Burner Box Wire | 10 |
|
- | ||||
| 6 | 3404A010-51 | Runner Utl. Drawer | 10 |
|
- | ||||
| 6 | 3404A009-51 | Runner Utl. Drawer | 10 |
|
- | ||||
| 7 | Y7101P25460 | Leg, Leveling | 10 |
|
- | ||||
| 8 | 7212P015-60 | Seal, Door (side) | 10 |
|
$ 45.93 | ||||
| 9 | 7212P014-60 | Seal, Door (top) | 10 |
|
$ 48.10 | ||||
| 10 | 3604F144-51 | Shield, Back Wire | 10 |
|
- | ||||
| 11 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F218-51) | 10 |
|
Immediately | $ 4.69 | |||
| 11 | WP7101P485-60 | Screw, Bracket (Replaces: 7101P289-60) | 10 |
|
$ 26.33 | ||||
| 12 | 7803P032-60 | Spring, Oven Door | 10 |
|
$ 4.83 | ||||
| 13 | 3807A292-34 | Support, Hinge (lt) | 10 |
|
- | ||||
| 13 | 3807A293-34 | Support, Hinge (rt) | 10 |
|
- | ||||
| 14 | 7403P160-60 | Switch, Hi-limit | 10 |
|
- | ||||
| 15 | 3807F281-80 | Support, Drawer Track | 10 |
|
- | ||||
| 16 | WP7101P072-60 | Screw (Replaces: 7101P072-60) | 10 |
|
$ 6.77 | ||||
| 16 | 2201W047-19 | Front, Main | 10 |
|
- | ||||
| 17 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 10 |
|
Immediately | $ 6.85 | |||
| 18 | 4003A014-80 | Base, Main | 10 |
|
- | ||||
| 19 | 3605F146-51 | Plate, Conduit Reinforcement | 10 |
|
$ 6.06 | ||||
| 20 | WPW10245259 | Block, Terminal (Replaces: 7401P039-60) | 10 |
|
Immediately | $ 31.65 | |||
| 21 | W11684512 | Screw (10abx1.0-zn) (Replaces: 7101P060-60) | 10 |
|
$ 12.69 | ||||
| 22 | WP7103P027-60 | Nut, Terminal Block (Replaces: 7103P027-60) | 10 |
|
Immediately | $ 6.47 | |||
| 23 | WP4159193 | Screw (Replaces: 7118P004-60) | 10 |
|
$ 4.29 | ||||
| 24 | 4005F286-51 | Cover, Access | 10 |
|
- | ||||
| 25 | WPW10068250 | Screw (Replaces: 7101P074-60) | 10 |
|
$ 3.66 | ||||
| 26 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 10 |
|
Immediately | $ 6.85 | |||
| 27 | M0282009 | Nut (Replaces: 7103P064-60) | 10 |
|
$ 12.06 | ||||
| 28 | 3604F100-51 | Raceway Wire | 10 |
|
- |
