01 - Body
02 - Door/drawer
03 - Oven

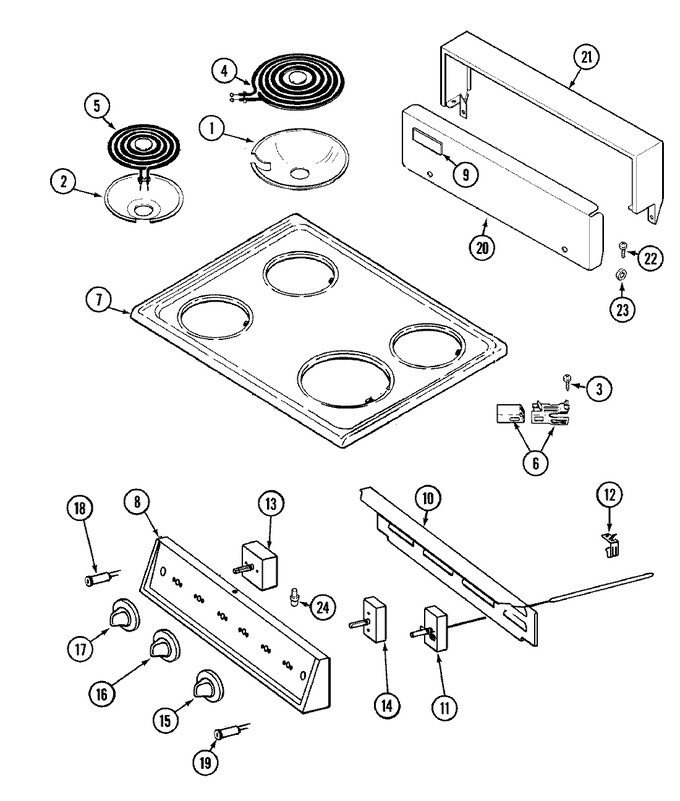

04 - Top Assembly
05 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10196405 | Bowl, Drip (8``-chr) (Replaces: 7725P047-60) | 10 |
|
Immediately | $ 15.56 | |||
| 2 | WPW10196406 | Bowl, Drip (6``)(w/hole-chr) (Replaces: 7725P015-60) | 10 |
|
Immediately | $ 12.05 | |||
| 2 | WPW10196406 | Bowl, Drip (6``-chr) (Replaces: 7725P048-60) | 10 |
|
Immediately | $ 12.05 | |||
| 3 | WP74004005 | Screw (Replaces: 7118P013-60) | 10 |
|
$ 6.95 | ||||
| 4 | WPY04000035 | Element (8``) (Replaces: 7406P040-60) | 10 |
|
$ 160.60 | ||||
| 5 | WPY04000036 | Element (6``) (Replaces: 7406P038-60) | 10 |
|
$ 88.70 | ||||
| 6 | 12001676 | Kit, Receptacle (Replaces: 1430306K) | 10 |
|
Immediately | $ 28.45 | |||
| 7 | 2002F065-81 | Top, Main (wht) | 10 |
|
- | ||||
| 8 | 2614F064-71 | Panel Control Wht | 10 |
|
- | ||||
| 9 | 7719P008-60 | Plate, Name | 10 |
|
- | ||||
| 10 | 3604F139-51 | Shield, Control | 10 |
|
- | ||||
| 11 | 7404P056-60 | Thermostat | 10 |
|
- | ||||
| 11 | 7101P125-60 | Screw, Thermostat | 10 |
|
- | ||||
| 12 | 7112P053-60 | Clip, Capillary | 10 |
|
- | ||||
| 13 | WP74002328 | Switch, Infinite (1400w) (Replaces: 7403P290-60) | 10 |
|
$ 144.06 | ||||
| 13 | WPW10179654 | Switch, Infinite (2400w) (Replaces: 7403P289-60) | 10 |
|
$ 144.45 | ||||
| 13 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 14 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 14 | 7403P207-60 | Switch, Selector | 10 |
|
- | ||||
| 15 | 7735P007-60 | Knob, Thermostat | 10 |
|
- | ||||
| 16 | 7739P008-60 | Knob, Selector Switc | 10 |
|
- | ||||
| 17 | 7737P004-60 | Knob, Infinite Switch | 10 |
|
- | ||||
| 18 | 7407P071-60 | Light, Indicator | 10 |
|
- | ||||
| 19 | 7407P072-60 | Light, Indicator | 10 |
|
- | ||||
| 20 | 2601F206-81 | Panel Bkgd Wht | 10 |
|
- | ||||
| 21 | 3603F017-50 | Frame, Backguard | 10 |
|
- | ||||
| 22 | WP7101P072-60 | Screw (Replaces: 7101P072-60) | 10 |
|
$ 6.77 | ||||
| 23 | M0282009 | Nut 10-24 (Replaces: 7103P071-60) | 10 |
|
$ 12.06 | ||||
| 24 | 8024P003-60 | Strike, Main Top | 10 |
|
- | ||||
| 25 | 5175A040-60 | Harness, Coil Top | 10 |
|
- | ||||
| 25 | 5125A200-60 | Harness, Control Panel | 10 |
|
- | ||||
| 26 | 8112P089-60 | Manual, Use & Care | 10 |
|
- | ||||
| 27 | 16002079 | Guide, Quick Ref - Admiral | 10 |
|
- |
