SELECT A DIAGRAM
01 - Body
02 - Door

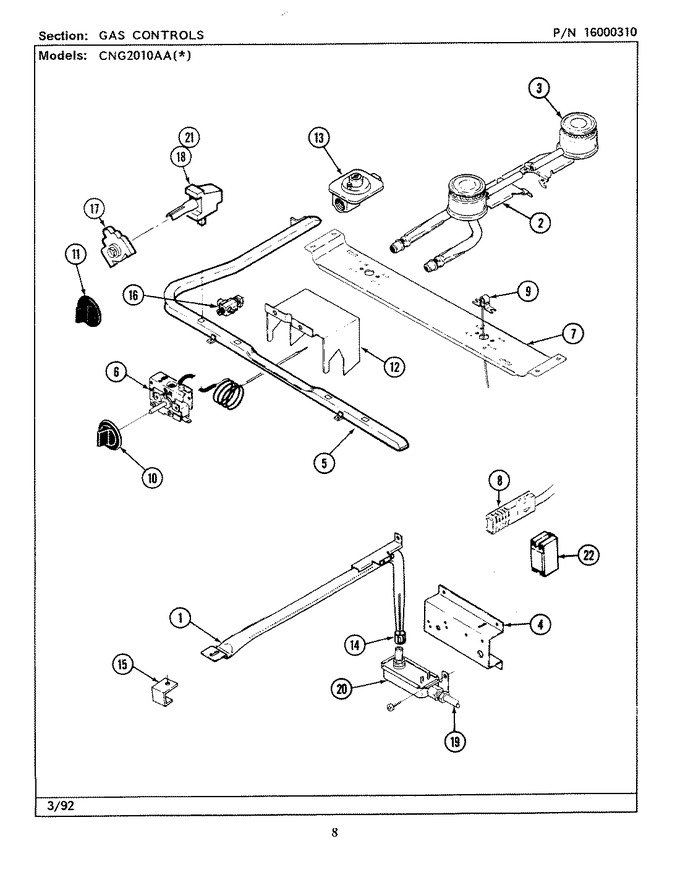

03 - Gas Controls (cng2010aax)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3403A017-45 | Burner, Oven | 07 |
|
- | ||||
| 1 | 3403D042-45 | Oven Burner Assy. | 08 |
|
- | ||||
| 2 | 7505P173-60 | Burner, Top (frt) | 07 |
|
- | ||||
| 3 | 7505P172-60 | Burner, Top (rear) | 07 |
|
- | ||||
| 4 | 3807F369-45 | Support, Oven Valve | 07 |
|
- | ||||
| 5 | 7513P143-60 | Pipe, Manifold | 07 |
|
- | ||||
| 6 | W10828565 | Screw, Black (Replaces: 7101P270-60) | 07 |
|
$ 6.70 | ||||
| 6 | 7404P062-60 | Thermostat, Oven | 07 |
|
- | ||||
| 7 | 3807F354-80 | Support, Top Burner | 07 |
|
- | ||||
| 8 | 12400035 | Lighter, Bake And Broil (Replaces: 7432P064-60) | 07 |
|
Immediately | $ 60.44 | |||
| 9 | 7432P028-60 | Igniter, Top Burner (rt) | 07 |
|
- | ||||
| 9 | 7432P029-60 | Igniter, Top Burner (lt) | 07 |
|
- | ||||
| 10 | 7731P041-60 | Knob, Thermostat | 07 |
|
- | ||||
| 11 | 7733P010-60 | Knob, Valve | 07 |
|
- | ||||
| 12 | 4005F320-51 | Cover, Thermostat | 07 |
|
- | ||||
| 13 | 7510P022-60 | Regulator Pressure | 07 |
|
- | ||||
| 14 | 3411F006-35 | Mixer, Air | 07 |
|
- | ||||
| 15 | 3807F336-51 | Support, Burner | 07 |
|
- | ||||
| 16 | 7502P002-60 | Valve, Shut Off | 07 |
|
- | ||||
| 17 | 7403P257-60 | Switch, Igniter | 07 |
|
- | ||||
| 18 | 7502P187-60 | Valve, Burner | 07 |
|
- | ||||
| 19 | 3414F085-44 | Tubing, Oven (3/8``) | 07 |
|
- | ||||
| 20 | 7501P015-60 | Valve, Oven (natural) | 07 |
|
- | ||||
| 21 | 7101P044-60 | Screw, Valve | 07 |
|
- | ||||
| 22 | 7431P006-60 | Module, Spark | 07 |
|
- |
