01 - Cover
03 - Cabinet/drum

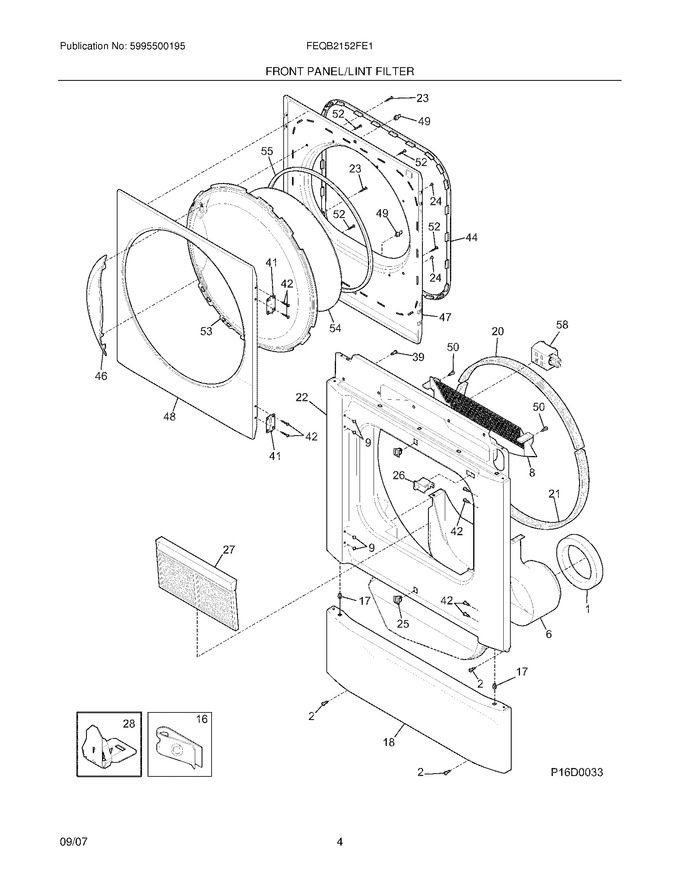

05 - Front Panel/lint Filter
07 - Controls/top Panel
09 - Motor
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 134417000 | Seal,air Duct |
|
Immediately | $ 9.22 | ||||
| 2 | 131168200 | Screw,pan Head ,8-18b X 0.31 |
|
Immediately | $ 14.18 | ||||
| 6 | 134382900 | Duct,air |
|
$ 183.12 | |||||
| 9 | 131633260 | Plug,black |
|
- | |||||
| 16 | 134440100 | Clip,u-nut |
|
$ 7.30 | |||||
| 17 | 134408700 | Clip,assembly |
|
$ 8.35 | |||||
| 18 | 134321760 | Panel,front Service ,black |
|
$ 116.76 | |||||
| 20 | 134440200 | Seal,felt ,upper |
|
Immediately | $ 41.24 | ||||
| 21 | 5303937183 | Seal,felt ,lower (Replaces: 134134700) |
|
Immediately | $ 35.87 | ||||
| 22 | 134915560 | Panel,front ,black ,w/lamp Hole |
|
- | |||||
| 23 | 134430300 | Screw,indt Pan Head ,10-14 X 0.625 ,quadrex |
|
Immediately | $ 14.89 | ||||
| 24 | 134465160 | Plug,handle Hole ,black |
|
- | |||||
| 25 | 131658800 | Door Catch,gray ,upper (Replaces: 131658845) |
|
Immediately | $ 68.38 | ||||
| 27 | 131450300 | Trap,lint Blade Assy ,gray (Replaces: 131450345) |
|
Immediately | $ 30.47 | ||||
| 28 | 134440000 | Clip,guide |
|
- | |||||
| 39 | 131205100 | Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive |
|
Immediately | $ 14.18 | ||||
| 41 | 134412460 | Hinge,door ,black |
|
$ 49.56 | |||||
| 42 | 134156200 | Screw,flat Head ,8-18ab X 0.44 ,quad Drive |
|
Immediately | $ 14.89 | ||||
| 44 | 134413345 | Gasket,door Seal ,gray |
|
$ 27.72 | |||||
| 46 | 134472202 | Handle,door |
|
$ 256.04 | |||||
| 47 | 134913360 | Panel,inner Door ,black |
|
- | |||||
| 48 | 134913160 | Panel,outer Door ,black |
|
$ 78.96 | |||||
| 49 | 5303207102 | Door Strike (Replaces: 134548100) |
|
Immediately | $ 19.85 | ||||
| 50 | 131303300 | Screw,pan Head ,10-16ab X 0.500 ,locking |
|
- | |||||
| 52 | 131243700 | Screw,indt Pan Head ,8-18ab X 0.375 (Replaces: 134529600) |
|
$ 3.36 | |||||
| 53 | 134443202 | Adapter,door Glass Ring |
|
$ 291.22 | |||||
| 54 | 134611800 | Glass,inner Door |
|
- | |||||
| 55 | 134580300 | Gasket,door Glass ,inner |
|
$ 66.51 | |||||
| F26 | 131843145 | Switch,door ,with Drum Light |
|
- | |||||
| F58 | 131843500 | Lamp Assy,drum Light ,w/mtg Bracket |
|
$ 73.00 | |||||
| F8 | 131845845 | Cover,lint Housing ,w/moist Sensor |
|
$ 105.89 | |||||
| NI | 5308027429 | Adhesive, High Temp |
|
Immediately | $ 60.25 | ||||
| NI | 131843500 | Lamp (Replaces: 131862800) |
|
$ 73.00 |
