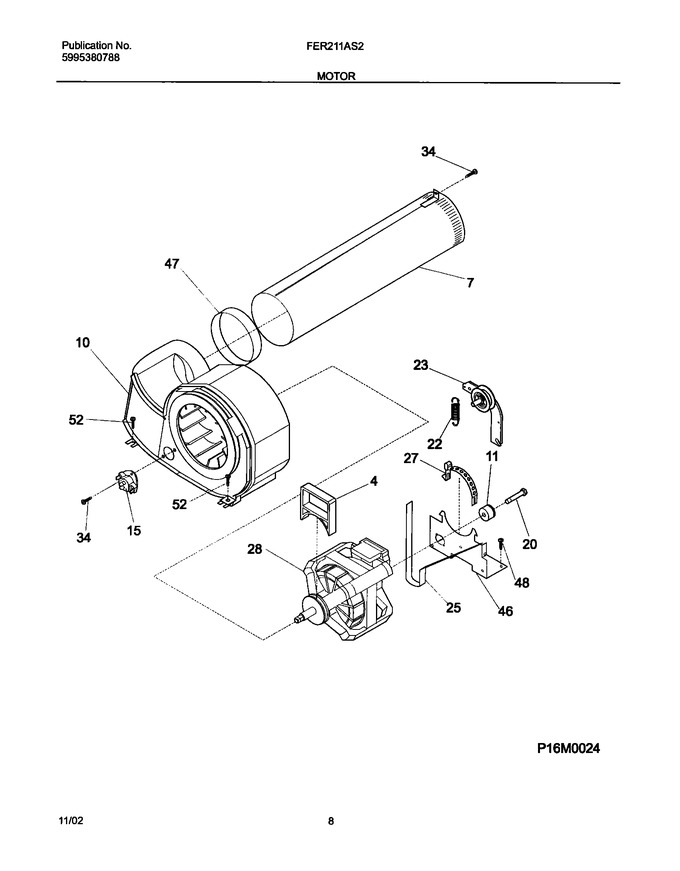

09 - Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	131435200		Lock,blower Housing				$ 73.02
7	131451600		Tube,exhaust ,rear ,w/mtg Bracket				$ 54.02
11	131749800		Spacer-idler				$ 43.95
20	131017900		Screw,hex Head ,1/4-20t X 1.25 ,spacer Mtg.,thread Cutting				$ 14.46
22	131601000		Spring,idler Arm			Immediately	$ 82.20
27	131419800		Clamp,motor Mtg.				$ 8.18
34	131243700		Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive				$ 3.36
46	131601100		Bracket,motor Mtg.		Appelez-nous	-
47	131633300		Seal-exhaust Tube				$ 19.06
48	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
52	131303100		Screw,hex Washer Head ,10-16ab X 0.625		Appelez-nous	-
F10	131775600		Housing,blower Assy ,cover & Wheel			Immediately	$ 155.43
F15	5308015398		Thermostat - Control				$ 4.25
F23	131863007		Idler Arm   (Replaces: 131863000)			Immediately	$ 43.05
F25	134503600		Belt   (Replaces: 134163400)			Immediately	$ 18.79
F28	131560100		Motor,main Drive ,w/pulley				$ 267.34
NI	131456800		Tube,exhaust ,side/bottom ,optional Kit				$ 36.29
