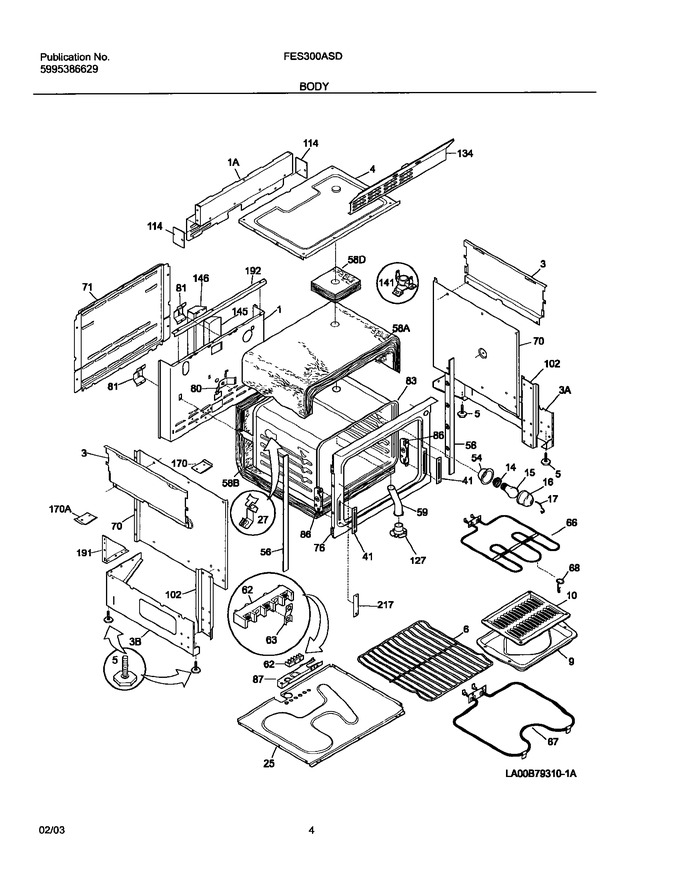

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318066402		Panel,main Back		Appelez-nous	-
3	318159800		Panel,body Side ,upper		Appelez-nous	-
4	318133400		Burner Box		Appelez-nous	-
5	318175510		Screw-leveling   (Replaces: 318175503)			Immediately	$ 24.26
6	318025314		Rack,oven   (Replaces: 318025308)			Immediately	$ 148.70
9	5303317977		Pan,broiler		Appelez-nous	-
10	5303317976		Insert,broiler Pan		Appelez-nous	-
14	316116400		Receptacle, Oven Light   (Replaces: 5308011085)			Immediately	$ 56.10
15	40A15		Bulb/lamp,oven Light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Cover,oven Light ,glass   (Replaces: 3201911)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
25	318179107		Panel,heat Shield ,sm Oven Bottom		Appelez-nous	-
27	5303284616		Clip,thermo Bulb Mtg				$ 9.86
41	5303310526		Cover-hinge Cutout				$ 83.00
54	318222400		Housing,oven Light				$ 58.22
56	318002612		Trim,oven ,white ,front		Appelez-nous	-
59	318072524		Tube,oven Vent		Appelez-nous	-
63	316208500		Plate,grounding Strap		Appelez-nous	-
66	318255605		Element,broil ,2750 W   (Replaces: 5303310513)			Immediately	$ 192.78
68	5304403015		Support,element Hanger				$ 35.04
70	318194400		Shield,insulation				$ 33.03
71	5303310515		Panel,wiring Cover ,rear				$ 368.97
76	318124102		Front,oven		Appelez-nous	-
80	5303324473		Bracket,oven Mounting		Appelez-nous	-
81	318192400		Spring,oven				$ 312.53
83	318089613		Liner,oven				$ 205.64
86	5303310524		Receptacle,hinge		Appelez-nous	-
87	318111803		Plate,mounting		Appelez-nous	-
102	5303311142		Support-oven Front		Appelez-nous	-
114	318175100		Plate-filler		Appelez-nous	-
127	318317100		Adapter,vent Tube ,with Converter   (Replaces: 5303310542)				$ 75.13
134	318077610		Cover,wire		Appelez-nous	-
145	5303311108		Weight		Appelez-nous	-
146	318038502		Cover,weight		Appelez-nous	-
170	5304405243		Anti-tip Accessories		Appelez-nous	-
191	5303304030		Bracket,angle ,corner		Appelez-nous	-
192	318042600		Plate-reinforcement		Appelez-nous	-
217	318112102		Plate,warning		Appelez-nous	-
1A	318070910		Panel,main Back ,upper		Appelez-nous	-
3A	318160004		Panel-lower Side Rh				$ 167.69
3B	318160005		Panel-lower Side Lh		Appelez-nous	-
58A	318133700		Insulation,oven Wrapper		Appelez-nous	-
58B	318133747		Insulation,oven Back		Appelez-nous	-
58D	3008673		Insulation		Appelez-nous	-
F62	5304409888		Terminal Block   (Replaces: 5303310518)			Immediately	$ 26.69
F67	318255006		Element,bake ,3000 W   (Replaces: 5303310512)			Immediately	$ 185.14
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
NI	5303325173		Cap-plug		Appelez-nous	-
NI	08002868		Screw 10 X 24 X 1/2				$ 14.18
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
