SELECT A DIAGRAM

01 - Cover

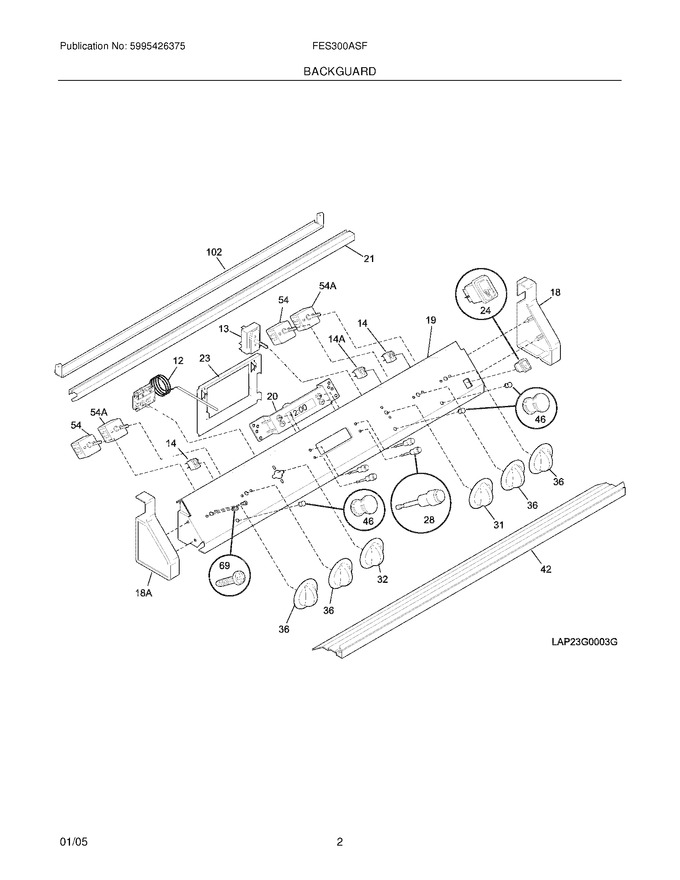

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	318254602		End Cap,white ,rh		Appelez-nous	-
19	318182963		Panel,control Mtg. ,white		Appelez-nous	-
21	318027804		Trim-backguard,white ,top				$ 135.56
23	318015020		Bracket-clock Mtg		Appelez-nous	-
28	318215600		Button,clock Set ,white		Appelez-nous	-
31	318196639		Knob,oven Selector ,white				$ 29.77
32	318196710		Knob,oven Thermostat ,white		Appelez-nous	-
36	318196633		Knob,control ,white				$ 62.95
42	318106924		Trim,backguard ,white ,bottom				$ 132.04
46	318228310		Lens,indicator Light   (Replaces: 5303297274)			Immediately	$ 22.91
69	5303288565		Screw,8-32 X 0.188   (Replaces: 5303323134)				$ 3.12
102	318055601		Bracket-mounting				$ 34.13
18A	318254603		End Cap,white ,lh		Appelez-nous	-
F12	318059310		Thermostat,oven			Immediately	$ 374.73
F13	318057910		Switch-selector				$ 158.03
F14	3200297		Light-lamp/indicator		Appelez-nous	-
F14A	318076700		Light,indicator ,125v		Appelez-nous	-
F20	318184801		Clock-timer		Appelez-nous	-
F24	5304527842		Switch-rocker, White   (Replaces: 316005607)			Immediately	$ 16.13
F54	318293820		Switch,surface Unit ,small   (Replaces: 318220066)				$ 83.62
F54A	318293827		Switch,surface Unit ,large   (Replaces: 318220067)			Immediately	$ 90.82
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89

    View Diagram in Separate Window       Print Part List
