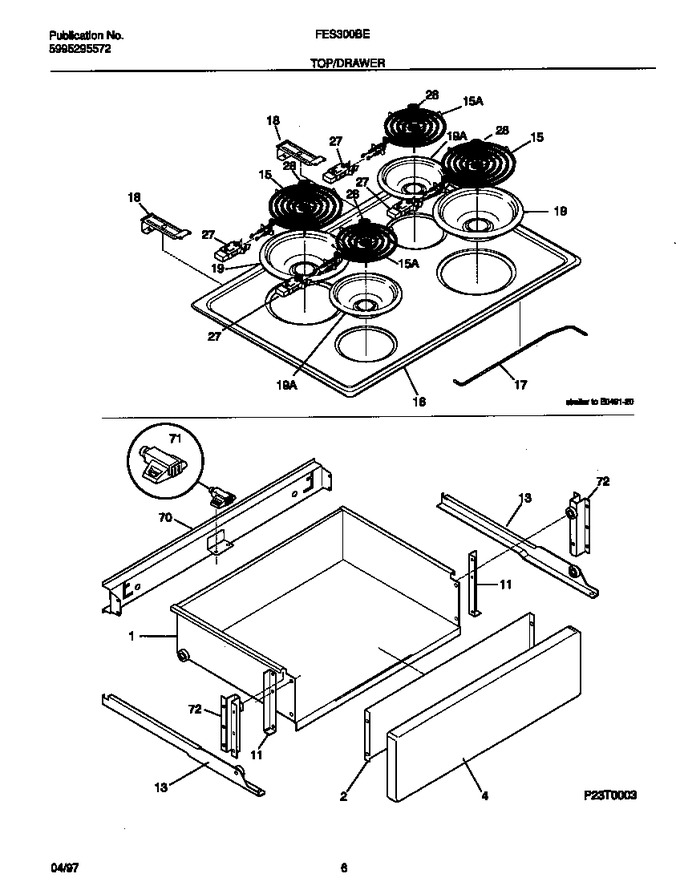

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer-utility   (Replaces: 5303310500)			Immediately	$ 143.39
2	318108000		Liner, Drawer		Appelez-nous	-
4	5303311178		Panel-drawer, Black		Appelez-nous	-
11	5303311125		Bracket,drawer		Appelez-nous	-
13	5303311130		Channel,drawer ,lh		Appelez-nous	-
13	5303311129		Channel,drawer ,rh		Appelez-nous	-
15	316439802		Element-surface, Small/6 Inch, (2)   (Replaces: 5303299749)			Immediately	$ 192.78
15	5308011964		Element-surface, Large/8 Inch, (2)				$ 209.08
16	5303051802		Main Top, Chrome		Appelez-nous	-
17	3051554		Rod-maintop Support		Appelez-nous	-
18	5303305530		Bracket-hinge, Main Top, (2)		Appelez-nous	-
19	316048413		Pan-surface Element, Large/8 Inch, (2)   (Replaces: 318067010)			Immediately	$ 9.85
19	316048414		Pan-surface Element, Small/6 Inch, (2)   (Replaces: 5303280336)			Immediately	$ 16.11
23	3201899		Washer, Hinge Assy, (4) (not Illustrated)		Appelez-nous	-
27	318122500		Support, Terminal Block, (4) (not Illustrated)		Appelez-nous	-
27	RR500		Terminal Block, Surface Element   (Replaces: 5303323704)			Immediately	$ 9.42
28	5303301461		Medallion, Surface Element		Appelez-nous	-
70	5303311143		Bracket-slide		Appelez-nous	-
71	5303311144		Magnet & Spring Assy		Appelez-nous	-
72	5303311145		Bracket & Wheel Assy		Appelez-nous	-
*16534	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*16535	08011955		Screw, Pan Head, 10-24 X 3/8, Square Drive			Immediately	$ 9.36
*16536	5303325174		Cap-screw		Appelez-nous	-
