SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Optional Ice Maker Kit


06 - Shelves & Accessories


07 - Unit Compartment & System

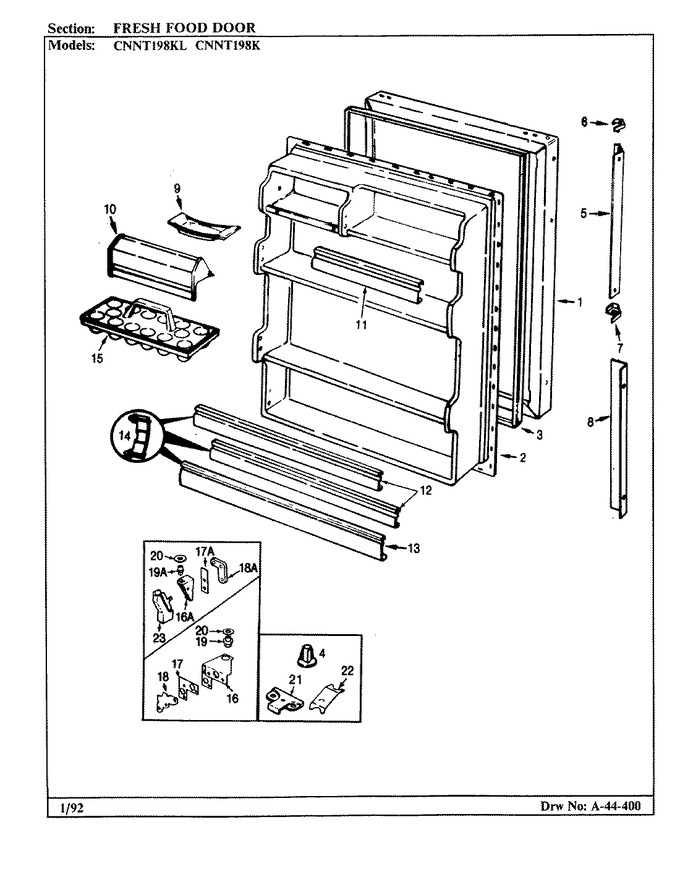

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68473-4-AM		Panel, Outer (alm)		Appelez-nous	-
1	RA95056-1		Door Insulation Kit		Appelez-nous	-
2	65275-5		Screw		Appelez-nous	-
2	68887-30		Liner, F.f. Door		Appelez-nous	-
3	WP70048-3		Gasket, F.f. Door   (Replaces: 66199-6)				$ 283.11
5	57769-30		Door Handle		Appelez-nous	-
5	65275-57		Screw		Appelez-nous	-
6	57948-1		End Cap		Appelez-nous	-
7	66799-1		Achor, Screw		Appelez-nous	-
7	57948-2		End Cap		Appelez-nous	-
7	402077-7		Screw		Appelez-nous	-
8	65244-2		Handle Trim		Appelez-nous	-
9	29936-2		Tray, Butter		Appelez-nous	-
10	69058-3		Door, Dairy		Appelez-nous	-
11	WP61003045		Trim, Door Shelf   (Replaces: 65151-287)				$ 129.55
12	WP61003045		Trim, Door Shelf   (Replaces: 65151-285)				$ 129.55
13	WP61003045		Trim, Door Shelf   (Replaces: 65151-335)				$ 129.55
14	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
15	60066-9		Tray, Egg		Appelez-nous	-
16	65275-51		Screw, Lower Hinge		Appelez-nous	-
16	68975-2		Hinge, Lower		Appelez-nous	-
17	69031-1		Shim		Appelez-nous	-
18	67874-1		Tapping Plate, Lower Hinge		Appelez-nous	-
18	65275-59		Screw		Appelez-nous	-
19	68977-1		Pin, Hinge		Appelez-nous	-
20	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
21	68987-1		Stop, Door		Appelez-nous	-
21	9986-108		Screw		Appelez-nous	-
21	65275-48		Screw		Appelez-nous	-
22	56209-3		Clip, Stop Screw		Appelez-nous	-
