SELECT A DIAGRAM

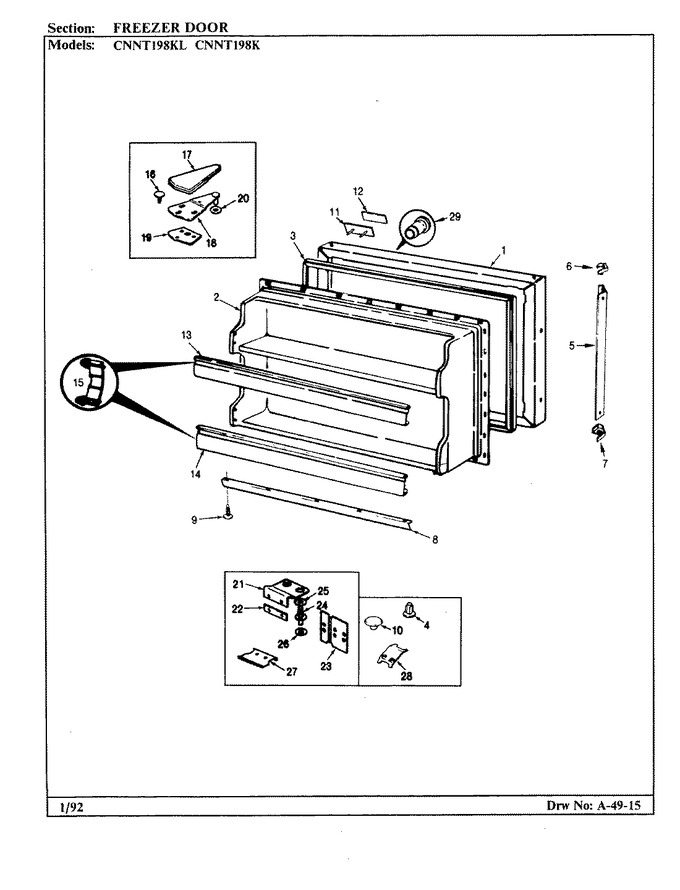

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Optional Ice Maker Kit


06 - Shelves & Accessories


07 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68474-21-AM		Panel, Outer (alm)		Appelez-nous	-
1	RA95056-1		Door Insulation Kit		Appelez-nous	-
2	65275-5		Screw		Appelez-nous	-
2	65928-5		Liner, Frz. Door		Appelez-nous	-
3	66199-5		Gasket, Frz. Door		Appelez-nous	-
4	55782-6		Plug Button (almond)		Appelez-nous	-
4	55782-10		Plug Button, Hdle & Door Stop		Appelez-nous	-
5	57769-29		Door Handle		Appelez-nous	-
5	65275-57		Screw		Appelez-nous	-
6	57948-1		End Cap		Appelez-nous	-
7	66799-1		Achor, Screw		Appelez-nous	-
7	402077-7		Screw		Appelez-nous	-
7	57948-2		End Cap		Appelez-nous	-
10	67634-3		Plug Button, Hinge Cup (alm)		Appelez-nous	-
10	67634-2		Plug Button, Hinge Cup (wht)		Appelez-nous	-
11	66986-4		Bezel, Nameplate		Appelez-nous	-
12	66982-4		Bezel, Nameplate		Appelez-nous	-
13	WP61003045		Trim, Door Shelf   (Replaces: 65151-286)				$ 129.55
14	WP61003045		Trim, Door Shelf   (Replaces: 65151-285)				$ 129.55
15	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
16	56144-13		Plug Button, Upper Hinge (wht)		Appelez-nous	-
16	56144-9		Plug Button, Hinge Screw (alm)		Appelez-nous	-
17	65003-6		Cover, Upper Hinge (wht)		Appelez-nous	-
17	65003-3		Cover, Upper Hinge (alm)		Appelez-nous	-
18	WP3-24838-048		Screw   (Replaces: 65275-52)				$ 7.00
18	53709-20		Hinge, Upper		Appelez-nous	-
19	65031-1		Shim, Upper Hinge		Appelez-nous	-
20	54233-1		Washer				$ 7.71
21	68811-2		Hinge, Center		Appelez-nous	-
21	65275-55		Screw		Appelez-nous	-
22	68812-1		Shim, Center Hinge		Appelez-nous	-
23	68377-1		Tapping Plate, Center Hinge		Appelez-nous	-
24	67322-1		Pin, Center Hinge		Appelez-nous	-
25	67483-1		Washer, Center Hinge (upper)		Appelez-nous	-
26	54233-2		Washer		Appelez-nous	-
27	65275-48		Screw		Appelez-nous	-
27	60030-1		Door Stop		Appelez-nous	-
27	68988-1		Stop, Door		Appelez-nous	-
27	9986-122		Screw		Appelez-nous	-
28	60123-2		Clip, Stop Screw		Appelez-nous	-
29	29356-1		Retainer, Nameplate		Appelez-nous	-
