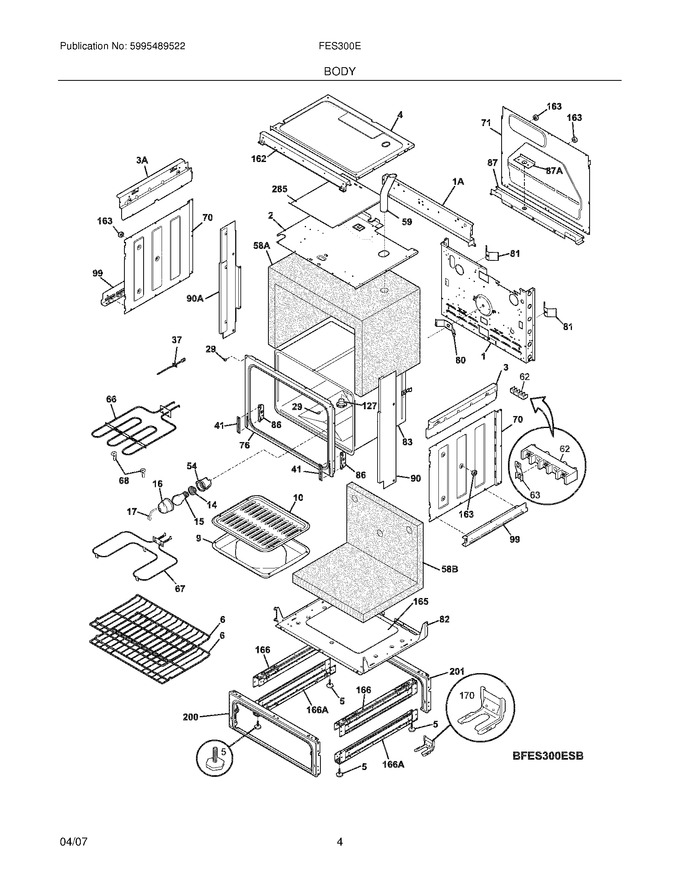

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259204		Back,main		Appelez-nous	-
2	318258902		Shield,insulation ,upper		Appelez-nous	-
3	318225210		Panel,bodyside ,upper Rh				$ 55.86
4	318073906		Panel,subtop		Appelez-nous	-
5	318175510		Screw-leveling   (Replaces: 318175503)			Immediately	$ 24.26
6	318345207		Rack,oven				$ 69.20
9	316081900		Pan,broileroptional Access0ry				$ 65.89
10	316082000		Insert,broiler Panoptional Accessory				$ 68.85
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	40A15		Bulb/lamp,light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Lens,oven Light ,glass   (Replaces: 08011086)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
29	318147430		Bumper,(2)   (Replaces: 318147411)				$ 18.95
41	5303310526		Cover-hinge Cutout				$ 83.00
54	318222400		Housing,oven Light				$ 58.22
59	318072572		Tube,vent ,oven		Appelez-nous	-
62	5303935061		Terminal Block Kit		Appelez-nous	-
63	318264200		Plate,grounding Strap				$ 23.51
66	318255605		Element,broil ,2750w   (Replaces: 318255600)			Immediately	$ 192.78
68	5304403015		Support,hanger ,(2) ,broil Element				$ 35.04
70	318259100		Shield,insulation ,sides ,(2)				$ 63.05
71	318260007		Panel,rear Box				$ 102.90
76	318056216		Front,oven		Appelez-nous	-
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
82	318258707		Shield,insulation ,lower				$ 108.24
83	318261403		Liner,oven Assy		Appelez-nous	-
86	318342400		Receptacle,hinge				$ 43.24
87	318260608		Bracket,cable Mtg.		Appelez-nous	-
90	318296902		Panel,filler ,white ,rh				$ 73.71
127	318317000		Adapter,vent Tube				$ 19.16
162	318225810		Box,extension		Appelez-nous	-
163	318014105		Spacer,(2)		Appelez-nous	-
165	318322600		Plate,shield		Appelez-nous	-
166	318298410		Bracket,base Support ,(2)				$ 75.83
170	318335500		Anti-tip & Accessories				$ 46.94
200	318335600		Frame & Wheel Assembly,black				$ 133.82
201	318298210		Frame,drawer				$ 81.95
285	318236201		Shield,hidden Wires		Appelez-nous	-
1A	318225110		Panel,main Back ,upper				$ 63.05
3A	318225211		Panel,bodyside ,upper Lh				$ 48.25
58A	318285074		Insulation,oven Wrapper				$ 58.31
58B	318285075		Insulation,oven Back				$ 56.54
87A	318111806		Plate,cord Set Mtg				$ 11.68
90A	318296903		Panel,filler ,white ,lh				$ 67.73
F166	318298403		Bracket,base Support ,lower ,(2)		Appelez-nous	-
F37	316217002		Probe,oven Temp			Immediately	$ 61.23
F67	318255006		Element,bake ,3000w   (Replaces: 318255002)			Immediately	$ 185.14
NI	3051050		Screw-shoulder				$ 12.29
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 1/2 ,(2)				$ 15.17
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	5304436875		Screw,8-18 X 1/2,black				$ 14.41
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	318224920		Harness,wiring ,main		Appelez-nous	-
NI	318235301		Connector Assy.,w/3 Lugs ,& Instructions   (Replaces: 318235300)				$ 29.06
NI	5303051099		Nut, Hex, 10-32		Appelez-nous	-
