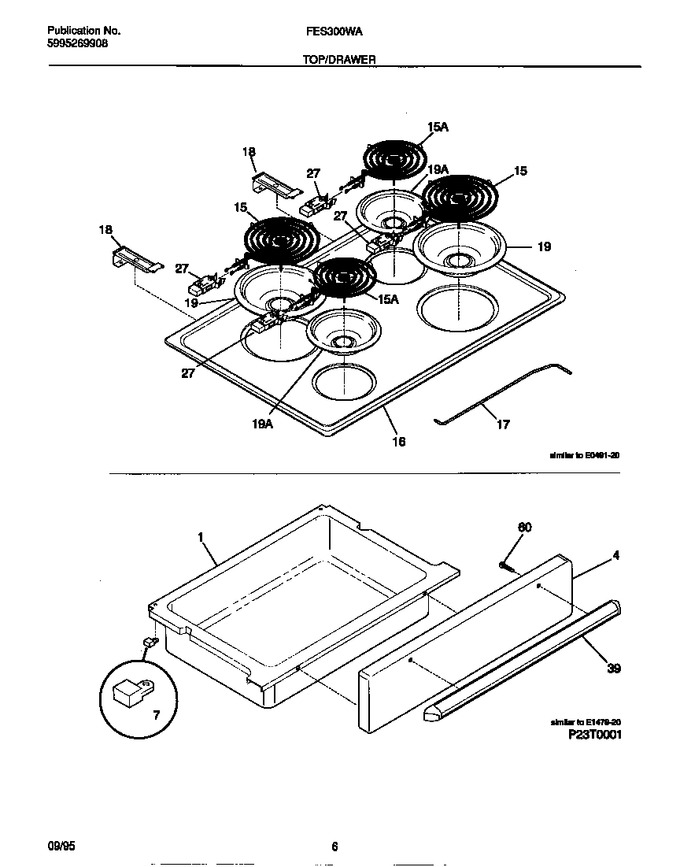

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308011051		Drawer-utility		Appelez-nous	-
4	5303300150		Panel-drawer, Almond		Appelez-nous	-
7	5303209487		Glide-drawer, Rear		Appelez-nous	-
15	PS12-4BK		Element-surface, Small/6 Inch   (Replaces: 5303309000)			Immediately	$ 35.96
15	316442301		Element-surface, Large/8 Inch   (Replaces: 5303309001)			Immediately	$ 44.39
16	5303300167		Main Top, Almond		Appelez-nous	-
17	3051554		Rod-maintop Support		Appelez-nous	-
18	5303305530		Bracket-hinge, Main Top, (2)		Appelez-nous	-
19	316048413		Pan-surface Element, Large/8 Inch   (Replaces: 5303013588)			Immediately	$ 9.85
19	316048414		Pan-surface Element, Small / 6 Inch   (Replaces: 5303280336)			Immediately	$ 16.11
27	5303935058		Terminal Block Kit, Surface Element   (Replaces: 5301167733)			Immediately	$ 13.81
39	5303300153		Handle-drawer, Almond		Appelez-nous	-
60	5304453707		Screw-handle   (Replaces: 5303300155)			Immediately	$ 15.92
