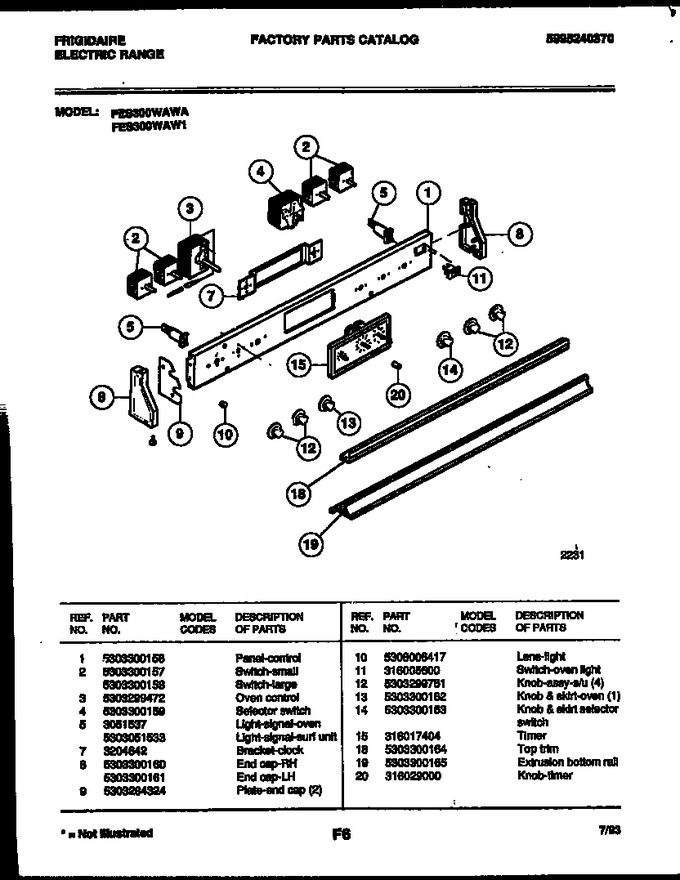

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303300156 | Panel-control |
|
- | |||||
| 2 | 5303300157 | Switch-small |
|
- | |||||
| 3 | 5303299472 | Oven Control |
|
$ 310.91 | |||||
| 4 | 5303300159 | Selector Switch |
|
$ 74.45 | |||||
| 5 | 5303051533 | Light-signal Surf Unit |
|
$ 53.81 | |||||
| 5 | 3051537 | Light-signal-oven |
|
- | |||||
| 7 | 3204642 | Bracket-clock |
|
- | |||||
| 8 | 5303300160 | End Cap, Rh |
|
- | |||||
| 9 | 5303284324 | Plate-end Cap (2) |
|
- | |||||
| 10 | 5308006417 | Lens-light |
|
$ 19.06 | |||||
| 11 | 316005600 | Switch-oven Light |
|
- | |||||
| 12 | 5303299751 | Knob-assy-s/u (4) |
|
- | |||||
| 13 | 5303300162 | Knob & Skirt-oven (1) |
|
- | |||||
| 14 | 5303300163 | Knob & Skirt Selector Switch |
|
- | |||||
| 15 | 316017404 | Timer |
|
- | |||||
| 18 | 5303300164 | Top Trim |
|
- | |||||
| 19 | 5303300165 | Extrusion Bottom Rail |
|
- | |||||
| 20 | 316029000 | Knob-timer |
|
- | |||||
| 2A | 5303300158 | Switch-large |
|
- | |||||
| 8A | 5303300161 | End Cap, Lh |
|
- |
