SELECT A DIAGRAM

01 - Cover

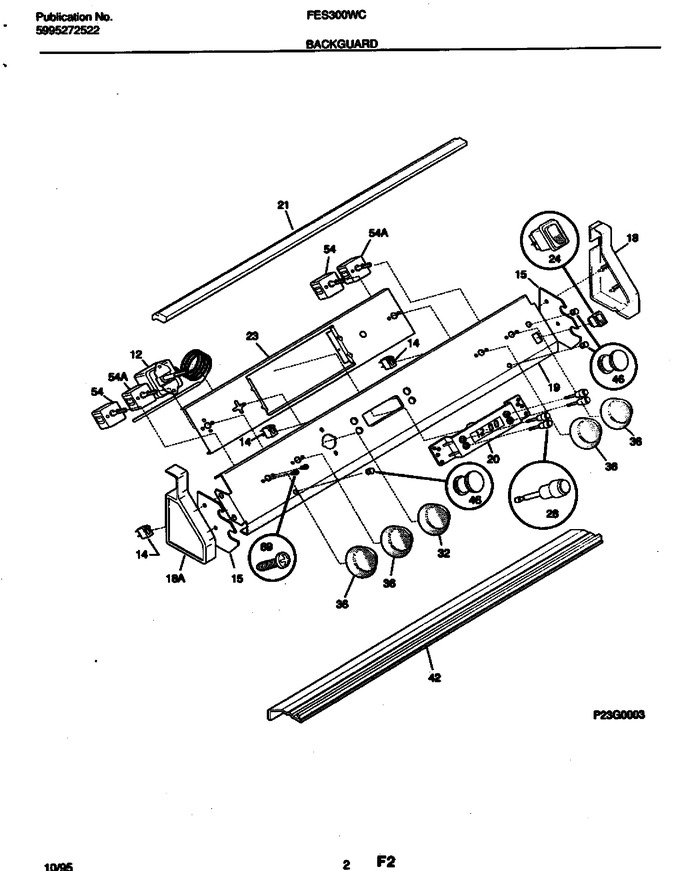

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	5303311124		Screw		Appelez-nous	-
14	3051539		Light-lamp/indicator, Oven				$ 60.53
14	5303051533		Light-lamp/indicator				$ 53.81
15	5303311123		Support-backguard, (2)		Appelez-nous	-
18	5303300160		End Cap, Rh		Appelez-nous	-
19	5303311121		Panel-control		Appelez-nous	-
21	5303300164		Trim-backguard, Top		Appelez-nous	-
23	318015001		Bracket-clock Mtg		Appelez-nous	-
28	5303311122		Button-clock		Appelez-nous	-
32	318016306		Knob-thermostat		Appelez-nous	-
36	5303299751		Knob-control, (4)		Appelez-nous	-
42	5303300165		Trim-vent		Appelez-nous	-
46	5303271239		Lens-light/lamp, Indicator		Appelez-nous	-
69	5303323137		Screw-switch Mtg, Sw To Cntl Pnl, (8)   (Replaces: 5303305528)				$ 11.88
18A	5303300161		End Cap, Lh		Appelez-nous	-
F12	5303311120		Thermostat-oven		Appelez-nous	-
F20	316065400		Clock/timer		Appelez-nous	-
F24	5304527841		Switch-light/lamp, Rocker Type, Black, (2)   (Replaces: 316005602)			Immediately	$ 11.38
F54	5303300157		Switch-surface Unit, Small		Appelez-nous	-
F54A	5303300158		Switch-surface Unit, Large		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
