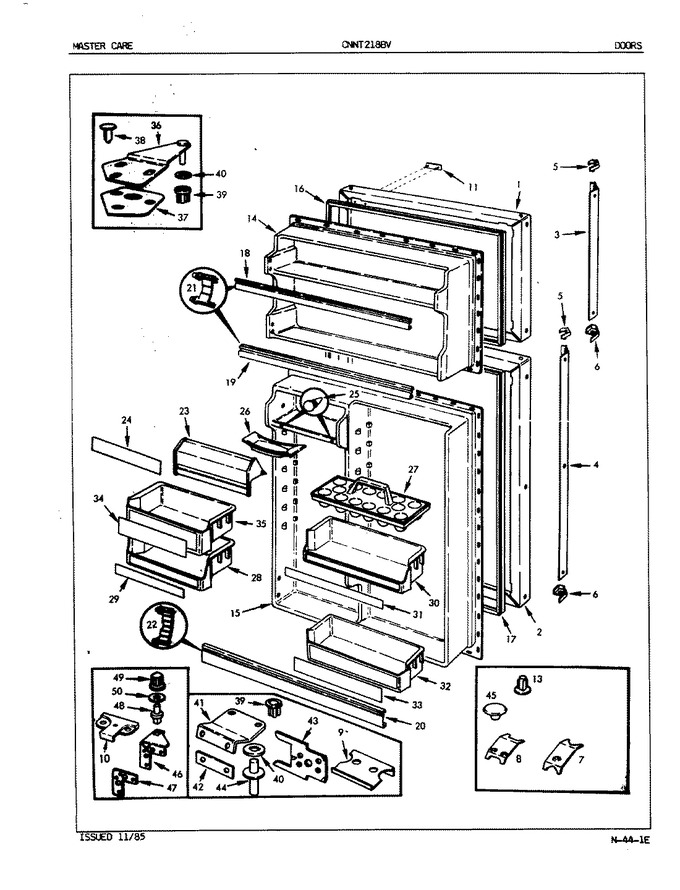

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60033-31-AM		Outer Panel		Appelez-nous	-
2	495036-900		Plug Button		Appelez-nous	-
2	60032-56-AM		Outer Panel		Appelez-nous	-
3	57769-20		Handle		Appelez-nous	-
4	57769-22		Handle		Appelez-nous	-
5	57948-1		End Cap		Appelez-nous	-
6	402076-7		Screw		Appelez-nous	-
6	57948-2		End Cap		Appelez-nous	-
7	56209-3		Clip, Stop Screw		Appelez-nous	-
8	9986-122		Screw		Appelez-nous	-
8	60123-2		Clip, Stop Screw		Appelez-nous	-
9	60030-1		Door Stop		Appelez-nous	-
10	9986-108		Screw		Appelez-nous	-
10	60419-1		Door Stop		Appelez-nous	-
11	65791-1		Nameplate		Appelez-nous	-
14	60042-22		Inner Panel		Appelez-nous	-
15	9986-12		Screw,door Liner		Appelez-nous	-
15	60048-6		Inner Panel		Appelez-nous	-
16	60462-5		Gasket, Door		Appelez-nous	-
17	WP70048-3		Gasket, Door   (Replaces: 60462-6)				$ 283.11
18	65151-130		Trim, Door Shelf		Appelez-nous	-
19	WP61003045		Trim, Door Shelf   (Replaces: 65151-142)				$ 129.55
20	60080-17		Trim		Appelez-nous	-
21	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
22	65246-1		Retainer				$ 5.04
23	60406-33		Door, Dairy		Appelez-nous	-
24	60573-4		Insert		Appelez-nous	-
25	28272-6		Bumper, Door		Appelez-nous	-
26	29936-2		Tray, Butter		Appelez-nous	-
27	60066-3		Tray, Egg		Appelez-nous	-
28	60037-18		Door Shelf		Appelez-nous	-
29	60572-8		Insert		Appelez-nous	-
30	60037-19		Door Shelf		Appelez-nous	-
31	60572-10		Insert		Appelez-nous	-
32	60037-17		Door Shelf		Appelez-nous	-
33	60572-7		Insert		Appelez-nous	-
34	60572-9		Insert		Appelez-nous	-
35	60037-20		Door Shelf		Appelez-nous	-
36	53709-18		Door Hinge, Upper		Appelez-nous	-
37	65031-1		Shim, Upper Hinge		Appelez-nous	-
38	56144-13		Plug Button, Upper Hinge (wht)		Appelez-nous	-
39	66036-1		Bushing,top/center Hinge		Appelez-nous	-
40	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
40	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
41	60031-2		Door Hinge, Center		Appelez-nous	-
42	60034-1		Spacer, Center Hinge		Appelez-nous	-
43	60622-1		Tapping Plate		Appelez-nous	-
43	9987-107		Screw, Center Hinge Mtg		Appelez-nous	-
44	60035-4		Pin, Center Hinge		Appelez-nous	-
46	60630-8		Door Hinge, Lower		Appelez-nous	-
46	403062-5		Screw		Appelez-nous	-
47	60626-1		Shim, Lower Hinge		Appelez-nous	-
48	53672-1		Pin, Lower Hinge		Appelez-nous	-
49	66034-1		Bushing, Lower Hinge				$ 19.76
50	54233-2		Washer		Appelez-nous	-
