SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer


09 - Door

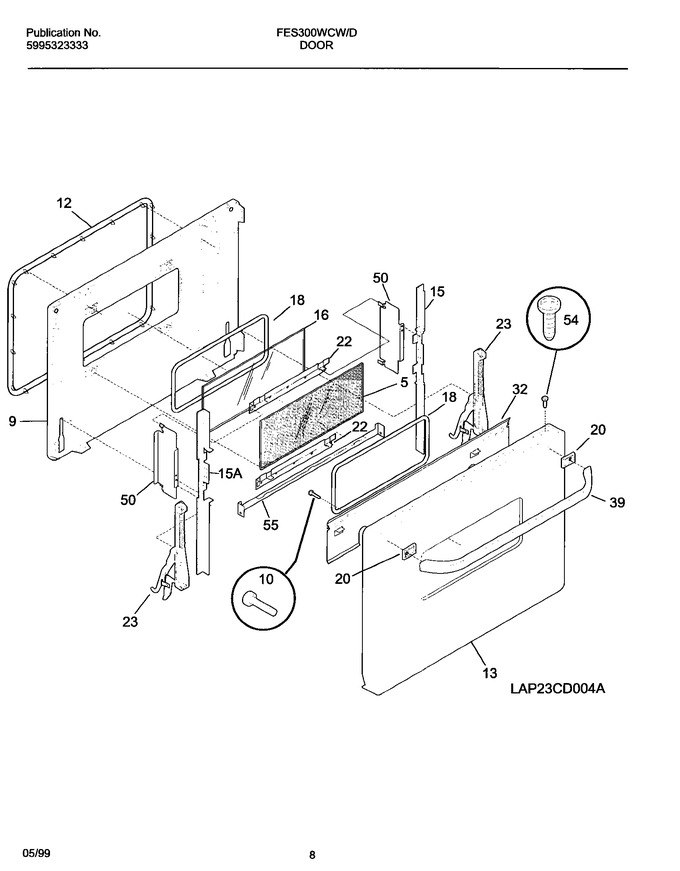

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	5303310508		Glass-oven Door, Inner		Appelez-nous	-
9	318112910		Liner-oven Door		Appelez-nous	-
10	732022890		Screw Handle,10-24 X 5/8   (Replaces: 5303324305)			Immediately	$ 1.84
12	318053301		Seal-oven Door			Immediately	$ 122.90
13	318009027		Panel-oven Door,almond		Appelez-nous	-
15	5303311136		Bracket-glass Mtg, Rh		Appelez-nous	-
16	318041620		Glass-oven Door,heat Barrier				$ 906.47
18	5303310505		Seal-rope		Appelez-nous	-
20	318014302		Spacer-handle,almond		Appelez-nous	-
22	5303310511		Retainer-glass		Appelez-nous	-
23	5303310506		Hinge Assy		Appelez-nous	-
39	316091120		Handle-door, Almond, Oven		Appelez-nous	-
50	318144900		Strenchening Glass		Appelez-nous	-
54	5303300265		Screw, 8-18 X 1/2				$ 15.17
55	318122300		Bracket-glass				$ 11.39
15A	5303311137		Bracket-glass Mtg, Lh		Appelez-nous	-
NI	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
NI	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
NI	08016432		Screw,8-18 X 3/8		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
