View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body

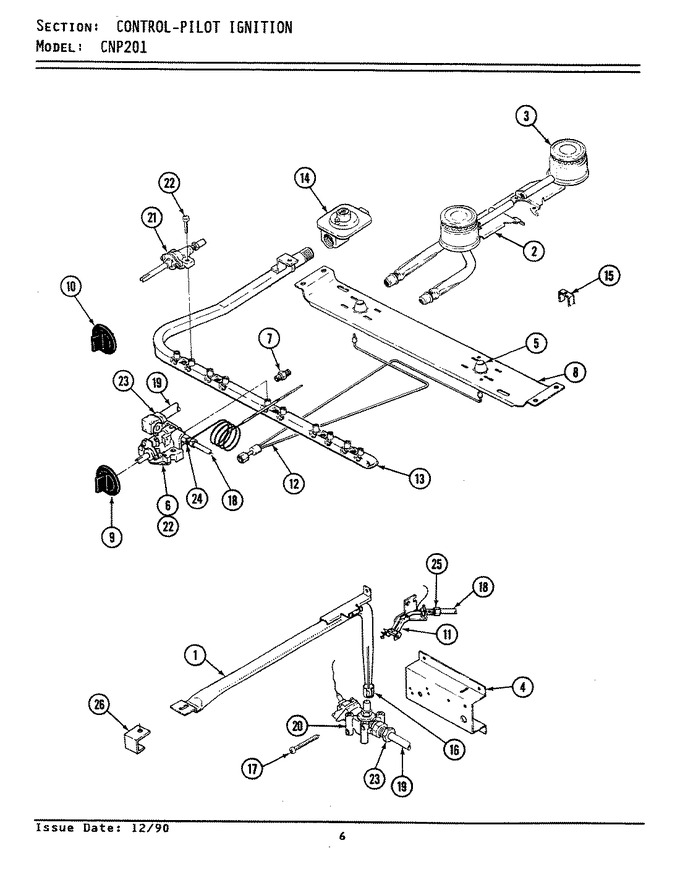

02 - Control (pilot Ignition)
03 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3403A005-45 | Burner Oven Assy | 00 |
|
- | ||||
| 2 | 7505P173-60 | Burner, Top (frt) | 00 |
|
- | ||||
| 3 | 7505P172-60 | Burner, Top (rear) | 00 |
|
- | ||||
| 4 | 3807F369-45 | Support, Oven Valve | 00 |
|
- | ||||
| 5 | 8030P001-60 | Cone, Top Lighter----na | 00 |
|
- | ||||
| 6 | 7515P028-60 | Thermostat | 00 |
|
- | ||||
| 6 | 7515P033-60 | Thermostat | 07 |
|
- | ||||
| 6 | 7101P295-60 | Screw | 00 |
|
- | ||||
| 6 | 7101P010-60 | Screw, Control | 07 |
|
- | ||||
| 6 | 7515P030-60 | Thermostat | 01 |
|
- | ||||
| 7 | 7507P032-60 | Filter, Top Lighter | 00 |
|
- | ||||
| 8 | 3807F353-80 | Support, Top Burner | 00 |
|
- | ||||
| 9 | 7731P006-60 | Knob, Thermostat | 00 |
|
- | ||||
| 10 | 7733P010-60 | Knob, Valve | 00 |
|
- | ||||
| 11 | Y0L01002199 | Lighter Ov. Br. | 00 |
|
- | ||||
| 12 | 7103P106-60 | Nut | 00 |
|
- | ||||
| 12 | 7432P049-60 | Lighter, Top Burner | 00 |
|
- | ||||
| 13 | 7513P128-60 | Pipe, Manifold | 01 |
|
- | ||||
| 13 | 7513P099-60 | Pipe Manifold | 00 |
|
- | ||||
| 13 | 7513P144-60 | Pipe Manifold | 07 |
|
- | ||||
| 14 | 7510P022-60 | Regulator Pressure | 00 |
|
- | ||||
| 15 | 3604F122-51 | Shield Top Lighter | 00 |
|
- | ||||
| 16 | 3411F006-34 | Mixer Air Oven Burner | 00 |
|
- | ||||
| 17 | WP7101P062-60 | Screw No.10 X 2 (Replaces: 7101P062-60) | 00 |
|
$ 7.24 | ||||
| 18 | 3414F013-44 | Tubing, Cntrl/pilo (3/16``) | 00 |
|
- | ||||
| 19 | 3414F044-44 | Tubing, 3/8 | 00 |
|
- | ||||
| 20 | 7501P053-60 | Valve, Oven | 00 |
|
- | ||||
| 21 | 7502P237-60 | Valve, Burner | 06 |
|
- | ||||
| 21 | 7502P127-60 | Valve, Top Burner | 00 |
|
- | ||||
| 21 | 7502P167-60 | Valve, Burner | 01 |
|
- | ||||
| 21 | 7502P187-60 | Valve, Burner | 07 |
|
- | ||||
| 22 | 7101P296-60 | Screw | 01 |
|
- | ||||
| 22 | 7101P043-60 | Screw, Control Valve | 00 |
|
- | ||||
| 22 | 7101P044-60 | Screw, Valve | 07 |
|
- | ||||
| 23 | 1555251 | Nut, Loxit (3/8``) | 00 |
|
- | ||||
| 24 | 1555222 | Nut, Loxit (3/16``) | 00 |
|
- | ||||
| 25 | 1555261K | Nut & Ferrule (3/16``) | 00 |
|
- | ||||
| 26 | 3807F336-51 | Support, Burner | 00 |
|
- | ||||
| 26 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 |
