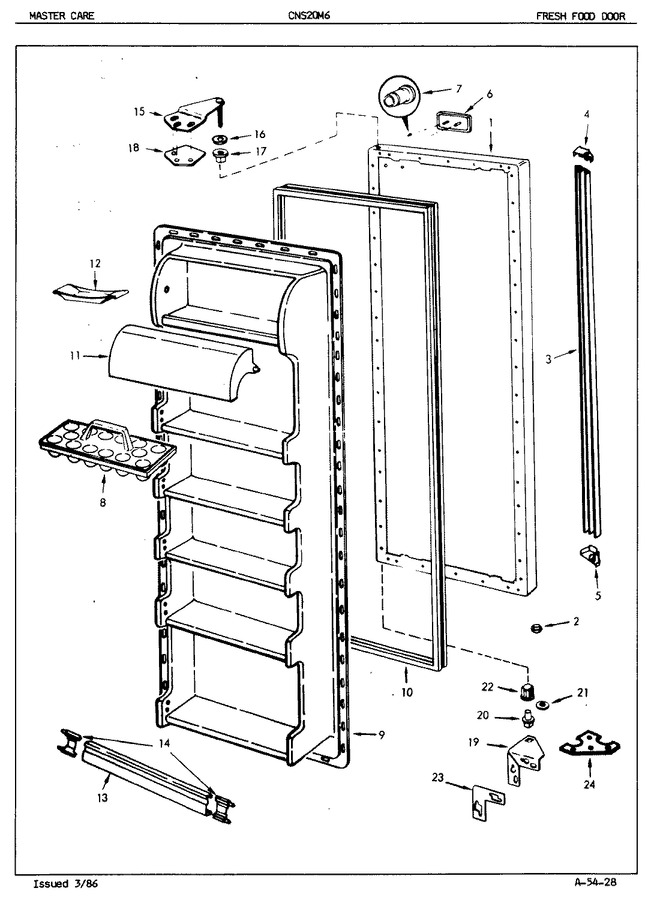

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	55587-34-AM		Outer Panel		Appelez-nous	-
2	495034-900		Plug Button, Door		Appelez-nous	-
3	402100-1		Screw		Appelez-nous	-
3	420063-1		Washer		Appelez-nous	-
3	56835-35		Handle		Appelez-nous	-
4	57947-1		End Cap		Appelez-nous	-
5	57947-2		End Cap		Appelez-nous	-
5	402077-7		Screw		Appelez-nous	-
6	57493-1		Nameplate		Appelez-nous	-
7	65211-1		Retainer, Nameplate		Appelez-nous	-
8	60066-5		Tray, Egg		Appelez-nous	-
9	9986-12		Screw,door Liner		Appelez-nous	-
9	65643-6		Liner, Door		Appelez-nous	-
10	53712-6		Gasket		Appelez-nous	-
11	66184-214		Door, Dairy		Appelez-nous	-
12	29936-2		Tray, Butter		Appelez-nous	-
13	65151-218		Trim, Door Shelf		Appelez-nous	-
14	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
15	53709-16		Upper Hinge,(chrome)		Appelez-nous	-
15	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
16	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
17	66036-1		Bushing,top/center Hinge		Appelez-nous	-
18	65031-1		Shim, Upper Hinge		Appelez-nous	-
19	403062-5		Screw		Appelez-nous	-
19	60630-12		Hinge, Lower		Appelez-nous	-
20	53672-1		Pin, Lower Hinge		Appelez-nous	-
21	54233-1		Washer				$ 7.71
22	66034-1		Bushing, Lower Hinge				$ 19.76
23	60626-1		Shim, Lower Hinge		Appelez-nous	-
24	52614-1		Bracket, Closer		Appelez-nous	-
24	54485-1		Closer, Door		Appelez-nous	-
24	55990-1		Seal Sleeve		Appelez-nous	-
24	65964-1		Tapping Plate, Lower Hinge		Appelez-nous	-
24	62442-5		Nameplate		Appelez-nous	-
24	52613-1		Insulation, Closer		Appelez-nous	-
24	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
