SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door

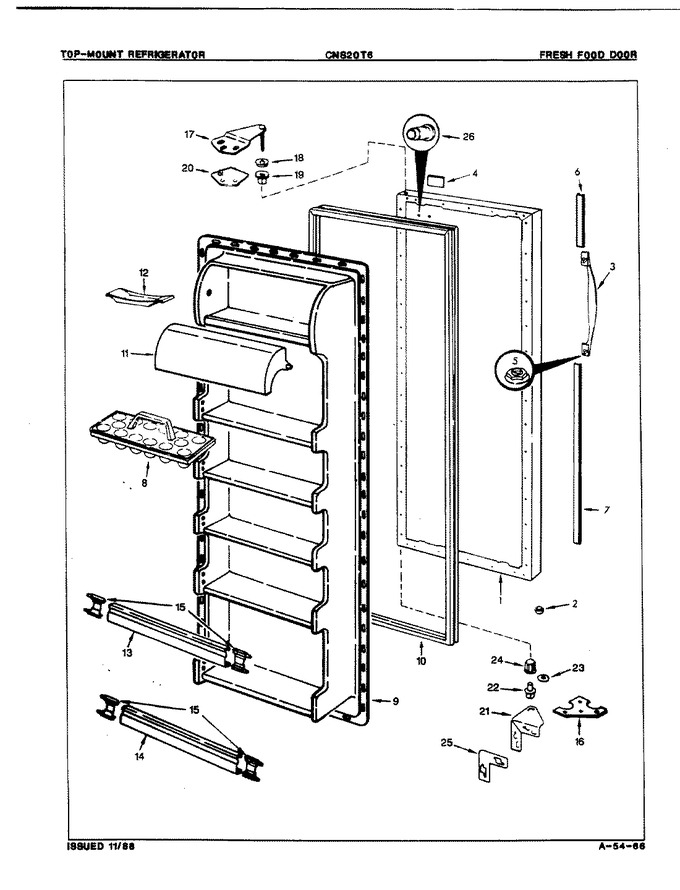

03 - Fresh Food Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	62391-30-AM		Panel, Outer Door		Appelez-nous	-
1	RA95060-1		Insulation Kit		Appelez-nous	-
2	495034-900		Plug Button, Door		Appelez-nous	-
3	63686-7		Handle		Appelez-nous	-
4	66986-4		Bezel, Nameplate		Appelez-nous	-
4	66982-3		Insert		Appelez-nous	-
5	434003-506		Fastener		Appelez-nous	-
6	65774-11		Insert		Appelez-nous	-
7	65774-12		Handle Ext		Appelez-nous	-
8	52613-1		Insulation, Closer		Appelez-nous	-
8	52614-1		Bracket, Closer		Appelez-nous	-
8	60066-1		Tray, Egg		Appelez-nous	-
9	65944-14		Liner, Door		Appelez-nous	-
9	65275-5		Screw		Appelez-nous	-
10	66929-7		Gasket		Appelez-nous	-
11	66184-148		Door, Dairy		Appelez-nous	-
12	29936-2		Tray, Butter		Appelez-nous	-
13	WP61003045		Trim, Door Shelf   (Replaces: 65151-298)				$ 129.55
14	WP61003045		Trim, Door Shelf   (Replaces: 65151-298)				$ 129.55
15	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
16	65964-1		Tapping Plate, Lower Hinge		Appelez-nous	-
17	53709-18		Door Hinge, Upper		Appelez-nous	-
17	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
18	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
19	66036-1		Bushing,top/center Hinge		Appelez-nous	-
20	65031-1		Shim, Upper Hinge		Appelez-nous	-
21	403062-5		Screw		Appelez-nous	-
21	60630-12		Hinge, Lower		Appelez-nous	-
22	53672-1		Pin, Lower Hinge		Appelez-nous	-
23	54233-1		Washer				$ 7.71
24	66034-1		Bushing, Lower Hinge				$ 19.76
25	60626-1		Shim, Lower Hinge		Appelez-nous	-
26	65211-1		Retainer, Nameplate		Appelez-nous	-
