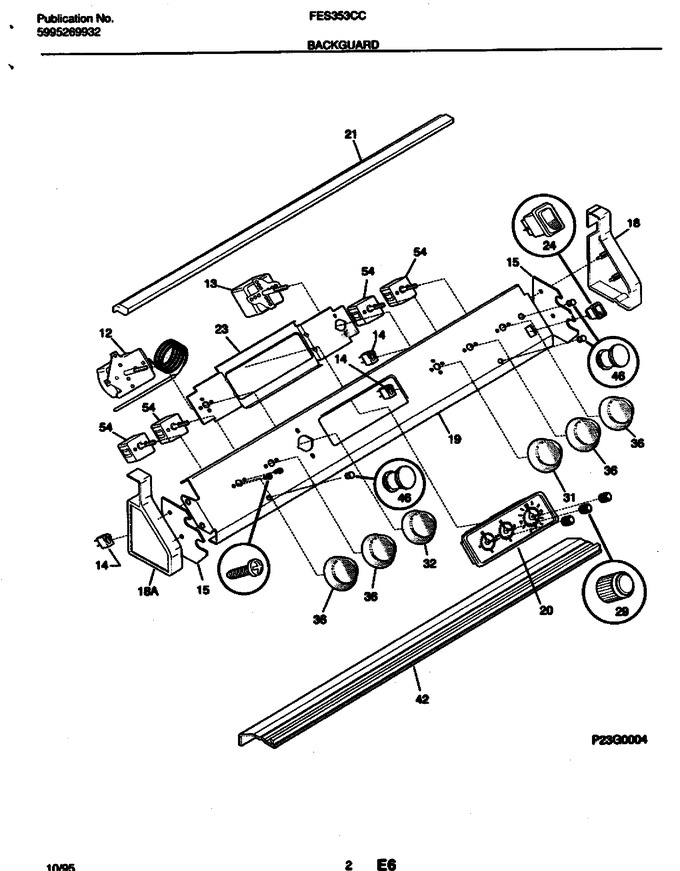

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	5303051533		Light-lamp/indicator				$ 53.81
14	5303051849		Light-lamp/indicator, Oven		Appelez-nous	-
14	5303271245		Light-lamp/indicator, Oven Lock		Appelez-nous	-
15	5303311123		Support-backguard, (2)		Appelez-nous	-
18	5303300160		End Cap, Rh		Appelez-nous	-
19	5303300187		Panel-control		Appelez-nous	-
21	5303300164		Trim-backguard, Top		Appelez-nous	-
23	5303305529		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-light/lamp, Rocker Type, Black, (2)   (Replaces: 316005602)			Immediately	$ 11.38
29	316029000		Knob-clock		Appelez-nous	-
31	5303300191		Knob-selector		Appelez-nous	-
32	5303300190		Knob-thermostat		Appelez-nous	-
36	5303299751		Knob-control, (4)		Appelez-nous	-
42	5303300165		Trim-vent		Appelez-nous	-
46	5303271239		Lens-light/lamp, Indicator		Appelez-nous	-
18A	5303300161		End Cap, Lh		Appelez-nous	-
F12	5303300188		Thermostat-oven				$ 376.43
F13	5303300189		Switch-selector				$ 256.62
F20	5303296354		Clock/timer, Analog 3 Stem		Appelez-nous	-
F54	5303300157		Switch-surface Unit, Small		Appelez-nous	-
F54	5303300158		Switch-surface Unit, Large		Appelez-nous	-
NI	5303323137		Screw-switch Mtg, Sw To Cntl Pnl, (8)   (Replaces: 5303305528)				$ 11.88
