SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door

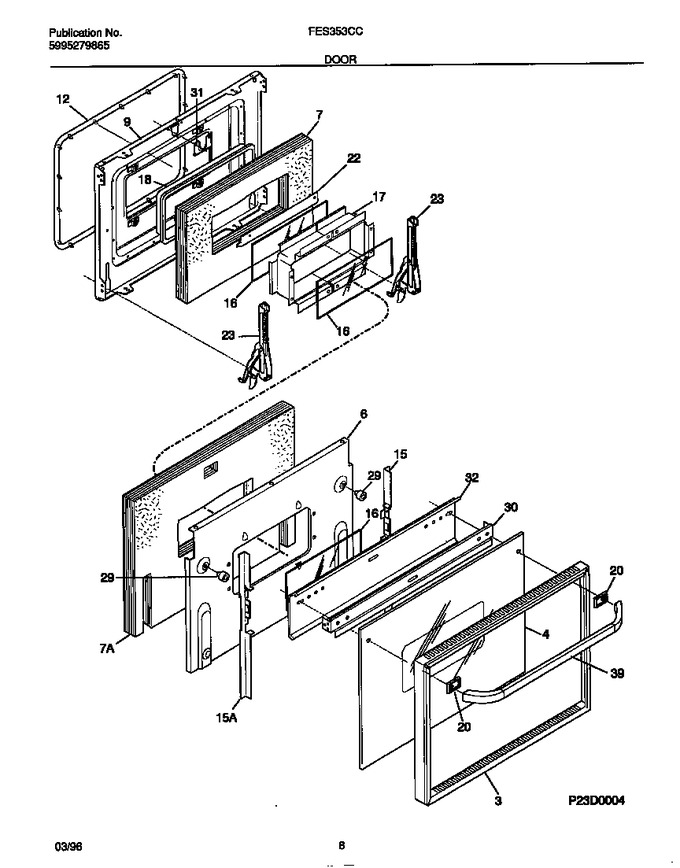

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303311165		Trim-oven Door		Appelez-nous	-
4	5303311166		Glass-oven Door, Outer		Appelez-nous	-
6	5303311149		Shield-wool		Appelez-nous	-
7	5303311150		Insulation, Oven Door		Appelez-nous	-
7	5303310532		Insulation-door		Appelez-nous	-
9	318112901		Liner-oven Door		Appelez-nous	-
12	318053103		Seal-oven Door   (Replaces: 5303311152)			Immediately	$ 150.03
15	5303311153		Bracket-glass Mtg				$ 10.87
15	5303311154		Bracket-glass Mtg,lh		Appelez-nous	-
16	5303310533		Glass-oven Door, Heat Barrier				$ 220.55
17	5303310534		Spacer-glass		Appelez-nous	-
18	5303310531		Seal-rope		Appelez-nous	-
20	5303310504		Spacer-handle, (2)		Appelez-nous	-
22	5303310511		Retainer-glass		Appelez-nous	-
23	5303310828		Hinge-oven Door, (2)		Appelez-nous	-
29	5303310535		Spacer-door		Appelez-nous	-
30	5303311183		Trim-handle, Almond		Appelez-nous	-
31	5303310536		Latch-door				$ 30.66
32	5303310509		Deflector		Appelez-nous	-
39	5303311173		Handle-door, Almond, Oven		Appelez-nous	-
*91296	5303308456		Screw, 8-18 X 0.531, Door Frame				$ 10.06
*91297	5303311156		Bumper-door		Appelez-nous	-
*91298	5303311306		Screw, 8-18 X 3/8		Appelez-nous	-
*91299	3051070		Screw, Hex Washer Head, 10-24 X 7/16, Special		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
