SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door

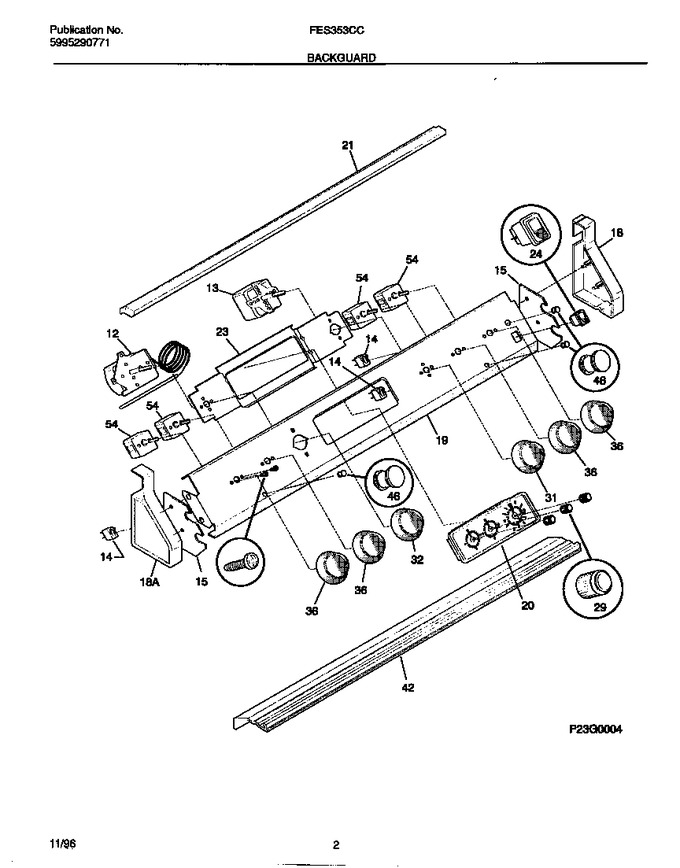

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	5303300188		Thermostat-oven				$ 376.43
13	5303300189		Switch-selector				$ 256.62
15	5303311123		Support-backguard, (2)		Appelez-nous	-
18	5303300161		End Cap, Black, Lh		Appelez-nous	-
18	5303300160		End Cap, Black, Rh		Appelez-nous	-
19	5303300187		Panel-control		Appelez-nous	-
20	5303296354		Clock/timer, Analog 3 Stem		Appelez-nous	-
21	318027800		Trim-backguard, Top		Appelez-nous	-
23	5303305529		Bracket-clock Mtg		Appelez-nous	-
29	316029000		Knob-clock		Appelez-nous	-
31	5303300191		Knob-selector		Appelez-nous	-
32	5303300190		Knob-thermostat		Appelez-nous	-
36	5303299751		Knob-surface Unit, Black		Appelez-nous	-
42	318106900		Trim-vent, Black		Appelez-nous	-
46	5303271239		Lens-light/lamp, Indicator		Appelez-nous	-
54	318120501		Switch-surface Unit				$ 244.13
*41080	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*41081	5303285912		Washer, Bracket-clock		Appelez-nous	-
*41082	5303323137		Screw, Switch Mtg, (2)   (Replaces: 5303305528)				$ 11.88
*41083	5303311528		Screw, Oval Hd, 6-20 X 5/8, Black		Appelez-nous	-
14A	5303051533		Light-lamp/indicator				$ 53.81
14B	5303051849		Light/lamp-oven, Indicator		Appelez-nous	-
14C	5303271245		Light/lamp, Oven Lock		Appelez-nous	-
24A	5304527841		Switch-light/lamp, Rocker Type, Black   (Replaces: 316005602)			Immediately	$ 11.38
24B	5303304692		Plate, Backup, Light Switch (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
