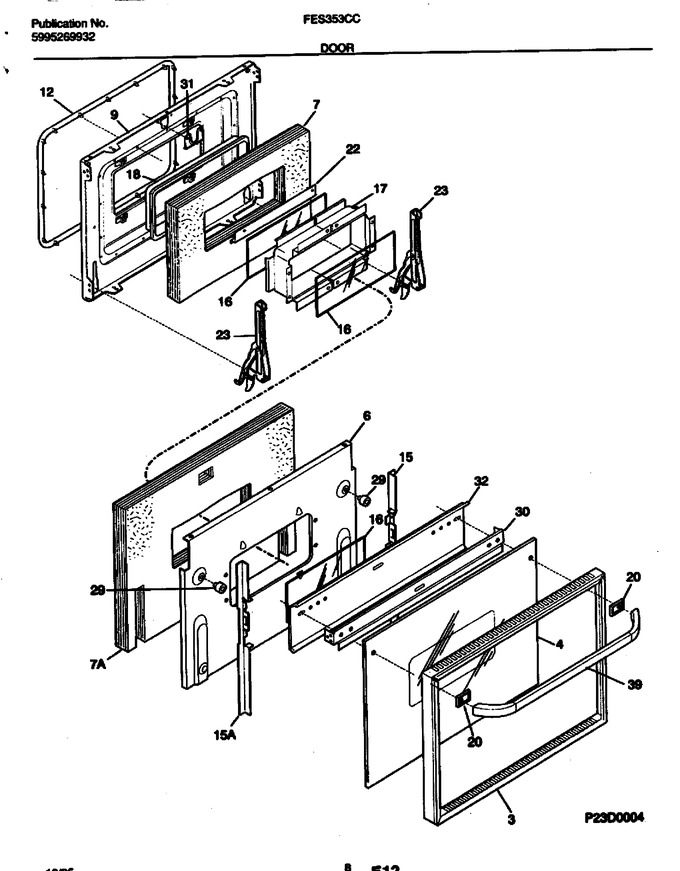

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303311132		Trim-oven Door		Appelez-nous	-
4	5303311148		Glass-oven Door, Outer		Appelez-nous	-
6	5303311149		Shield-wool		Appelez-nous	-
7	5303310532		Insulation-door		Appelez-nous	-
9	5303311151		Liner-oven Door		Appelez-nous	-
12	318053103		Seal-oven Door   (Replaces: 5303311152)			Immediately	$ 150.03
15	5303311153		Bracket-glass Mtg				$ 10.87
16	5303310533		Glass-oven Door, Heat Barrier				$ 220.55
17	5303310534		Spacer-glass		Appelez-nous	-
18	5303310531		Seal-rope		Appelez-nous	-
20	5303310504		Spacer-handle, Small Oven, (2)		Appelez-nous	-
22	5303310511		Retainer-glass		Appelez-nous	-
29	5303310535		Spacer-door		Appelez-nous	-
30	318014001		Trim-handle, White		Appelez-nous	-
31	5303311155		Latch-door		Appelez-nous	-
32	5303310509		Deflector		Appelez-nous	-
39	5303305531		Handle-door, White, Oven		Appelez-nous	-
15A	5303311154		Bracket-glass Mtg,lh		Appelez-nous	-
7A	5303311150		Insulation, Oven Door		Appelez-nous	-
NI	5303311156		Bumper-door		Appelez-nous	-
