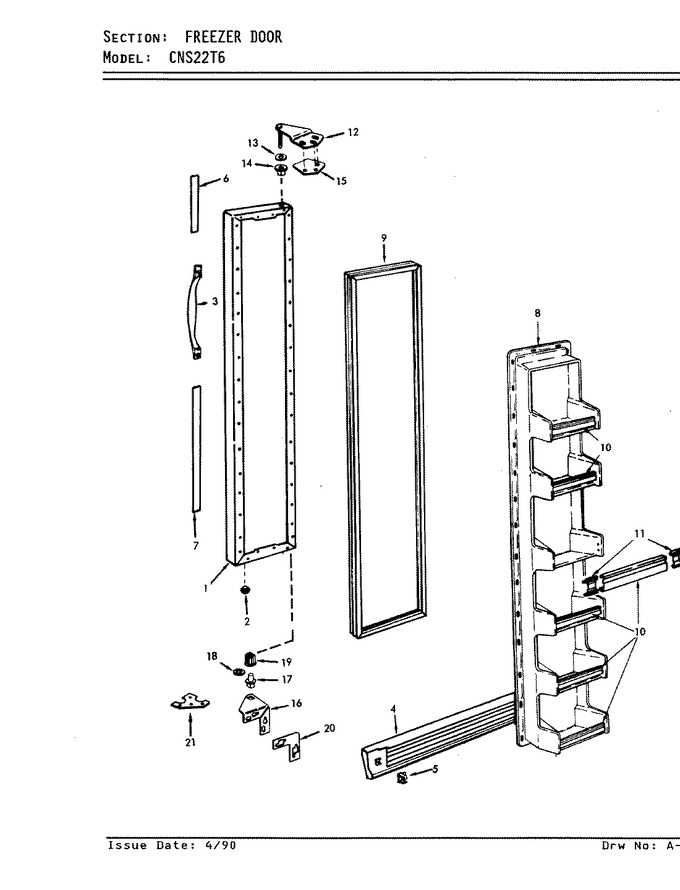

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Freezer Compartment
02 - Freezer Door
03 - Fresh Food Compartment
04 - Fresh Food Door
05 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 62391-11-AM | Panel, Outer Door |
|
- | |||||
| 1 | RA95060-1 | Insulation Kit |
|
- | |||||
| 2 | 495034-900 | Plug Button, Door |
|
- | |||||
| 3 | 434003-506 | Fastener |
|
- | |||||
| 3 | 63686-7 | Handle |
|
- | |||||
| 4 | 58437-20 | Kickplate |
|
- | |||||
| 5 | 52854-3 | Clip, Kickplate |
|
- | |||||
| 5 | WP489478 | Screw, Kickplate Mtg. (Replaces: 9986-101) |
|
$ 6.98 | |||||
| 6 | 65774-11 | Insert |
|
- | |||||
| 7 | 65774-12 | Handle Ext |
|
- | |||||
| 8 | 65275-5 | Screw |
|
- | |||||
| 8 | 59433-221 | Inner Panel |
|
- | |||||
| 9 | 53712-23 | Gasket, Door |
|
- | |||||
| 10 | WP61003045 | Trim, Door Shelf (Replaces: 65151-3) |
|
$ 129.55 | |||||
| 11 | WP65245-1 | Retainer, Shelf Trim (Replaces: 65245-1) |
|
$ 9.39 | |||||
| 12 | 53709-18 | Door Hinge, Upper |
|
- | |||||
| 12 | WP3-24838-048 | Screw (Replaces: 9986-87) |
|
$ 7.00 | |||||
| 13 | WP52185-1 | Washer (Replaces: 52185-1) |
|
Immediately | $ 9.47 | ||||
| 14 | 66036-1 | Bushing,top/center Hinge |
|
- | |||||
| 15 | 65031-1 | Shim, Upper Hinge |
|
- | |||||
| 16 | 403062-801 | Screw |
|
- | |||||
| 16 | 60630-10 | Hiner, Lower (chrome) |
|
$ 26.18 | |||||
| 17 | 53672-1 | Pin, Lower Hinge |
|
- | |||||
| 18 | 54233-1 | Washer |
|
$ 7.71 | |||||
| 19 | 66034-1 | Bushing, Lower Hinge |
|
$ 19.76 | |||||
| 20 | 60626-1 | Shim, Lower Hinge |
|
- | |||||
| 21 | 65964-1 | Tapping Plate, Lower Hinge |
|
- |
