SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body

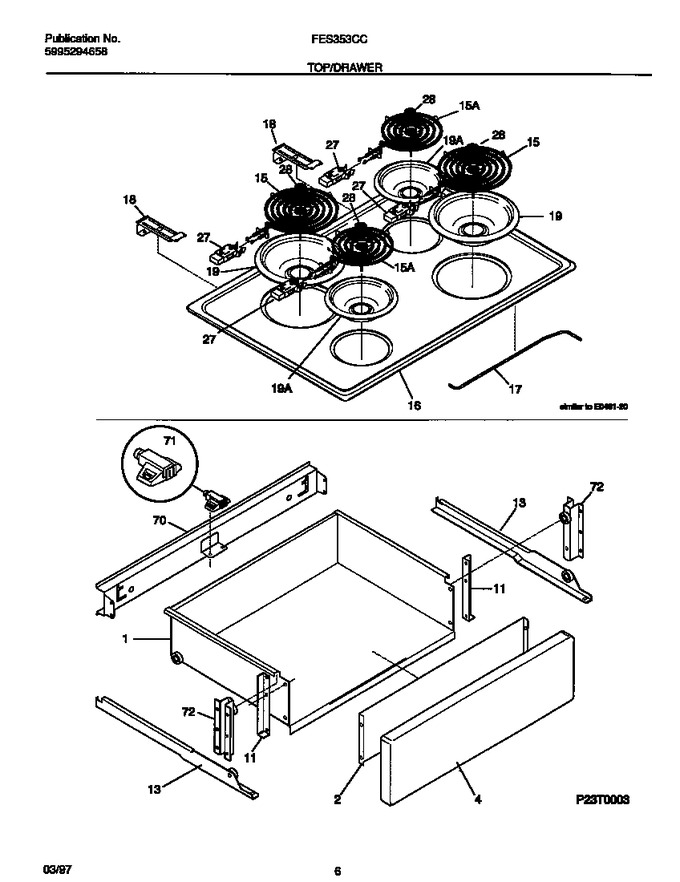

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	318108000		Liner, Drawer		Appelez-nous	-
4	5303311126		Panel-drawer		Appelez-nous	-
11	5303311125		Bracket,drawer		Appelez-nous	-
15	PS12-4BK		Element-surface, Small, 1500w   (Replaces: 5303309000)			Immediately	$ 35.96
15	316442301		Element-surface, Large/8 Inch   (Replaces: 5303309001)			Immediately	$ 44.39
16	5303300166		Main Top, White		Appelez-nous	-
17	3051554		Rod-maintop Support		Appelez-nous	-
18	5303305530		Bracket-hinge, Main Top, (2)		Appelez-nous	-
19	316048413		Pan-surface Element, Large/8 Inch, (2)   (Replaces: 5303013588)			Immediately	$ 9.85
19	316048414		Pan-surface Element, Small/6 Inch, (2)   (Replaces: 5303280336)			Immediately	$ 16.11
28	5303301461		Medallion, Surface Element		Appelez-nous	-
70	5303311143		Bracket-slide		Appelez-nous	-
71	5303311144		Magnet & Spring Assy		Appelez-nous	-
72	5303311145		Bracket & Wheel Assy		Appelez-nous	-
*50613	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*50614	5303324497		Roller-nylon		Appelez-nous	-
*50615	5303325174		Cap-screw		Appelez-nous	-
13A	5303311129		Channel,drawer ,rh		Appelez-nous	-
13B	5303311130		Channel,drawer ,lh		Appelez-nous	-
1A	5304505701		Drawer-utility   (Replaces: 5303310500)			Immediately	$ 143.39
1B	5303324508		Drawer-utility		Appelez-nous	-
1C	08011955		Screw, Pan Head, 10-24 X 3/8, Square Drive (not Illustrated)			Immediately	$ 9.36
27A	RR500		Terminal Block, Surface Element   (Replaces: 5303323704)			Immediately	$ 9.42
27B	318122500		Support, Terminal Block, (4) (not Illustrated)		Appelez-nous	-
