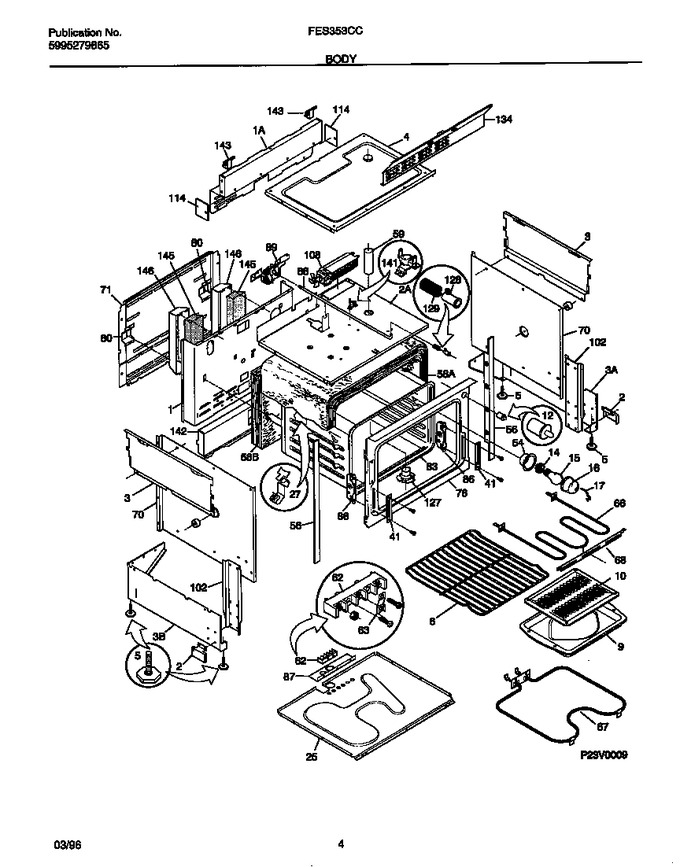

01 - Cover
02 - Backguard
03 - Body
04 - Top/drawer
05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303311161 | Panel-back, Upper |
|
- | |||||
| 1 | 5303310527 | Back-main |
|
- | |||||
| 2 | 5303311158 | Shield-oven Top |
|
- | |||||
| 2 | 08012736 | Shield-toe |
|
- | |||||
| 3 | 5303300143 | Panel-bodyside |
|
- | |||||
| 3 | 5303280349 | Panel-bodyside, Lower, Rh |
|
- | |||||
| 3 | 5303280351 | Panel-bodyside, Lower, Lh |
|
- | |||||
| 4 | 318133400 | Burner Box |
|
- | |||||
| 5 | 318175510 | Screw-leveling (Replaces: 5303210257) |
|
Immediately | $ 24.26 | ||||
| 6 | 318025314 | Rack-oven (Replaces: 5303310522) |
|
Immediately | $ 148.70 | ||||
| 9 | 5303317977 | Pan,broiler |
|
- | |||||
| 10 | 5303317976 | Insert,broiler Pan |
|
- | |||||
| 12 | 5303311157 | Switch-door |
|
- | |||||
| 14 | 316116400 | Socket-light/lamp, Oven (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 15 | 3201908 | Lamp-oven Light |
|
- | |||||
| 16 | 5304524341 | Glass-oven Light Lens (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 3204483 | Retainer-lens |
|
- | |||||
| 25 | 318121301 | Shield-heat, Lower |
|
- | |||||
| 27 | 5303284616 | Clip-thermo Bulb |
|
$ 9.86 | |||||
| 41 | 5303310526 | Cover-hinge Cutout |
|
$ 83.00 | |||||
| 54 | 5303310514 | Housing-oven Light |
|
- | |||||
| 56 | 318002602 | Trim-oven Front |
|
- | |||||
| 58 | 5303310538 | Insulation, Oven Wrapper |
|
- | |||||
| 58 | 5303310539 | Insulation, Oven Back |
|
- | |||||
| 59 | 5303311139 | Tube-oven Vent |
|
- | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 5303310518) |
|
Immediately | $ 26.69 | ||||
| 63 | 5303310517 | Plate,ground Strap |
|
- | |||||
| 66 | 318255605 | Element-broil (Replaces: 5303310513) |
|
Immediately | $ 192.78 | ||||
| 67 | 318255006 | Element-bake (Replaces: 5303310512) |
|
Immediately | $ 185.14 | ||||
| 68 | 5303307563 | Support-element |
|
- | |||||
| 70 | 5303300142 | Shield-insulation |
|
- | |||||
| 71 | 5303319029 | Shield-rear Wall |
|
- | |||||
| 76 | 318124100 | Front-oven |
|
- | |||||
| 80 | 5303301261 | Spring,oven |
|
- | |||||
| 83 | 318089600 | Liner-oven Assy |
|
- | |||||
| 86 | 5303310524 | Channel-hinge |
|
- | |||||
| 87 | 5303311146 | Plate-mounting |
|
- | |||||
| 88 | 5303311160 | Rod-latch |
|
- | |||||
| 89 | 5303311162 | Motor-latch/lock |
|
- | |||||
| 102 | 5303311142 | Support-oven Front |
|
- | |||||
| 108 | 318073001 | Motor-fan |
|
- | |||||
| 114 | 3051827 | Plate-filler |
|
- | |||||
| 127 | 318317100 | Adapter Assy (Replaces: 5303310542) |
|
$ 75.13 | |||||
| 128 | 5303311163 | Bushing |
|
- | |||||
| 129 | 5303311164 | Spring |
|
$ 18.95 | |||||
| 134 | 5303310515 | Cover-wiring |
|
$ 368.97 | |||||
| 141 | 318005000 | Thermostat-safety |
|
- | |||||
| 142 | 5303310541 | Deflector-air |
|
- | |||||
| 143 | 5303300148 | Bracket-hinge |
|
- | |||||
| 145 | 5303311108 | Weight |
|
- | |||||
| 146 | 318038500 | Cover-weight |
|
- | |||||
| *91284 | 3203575 | Anti-tip Bracket |
|
- | |||||
| *91285 | 3203576 | Anti-tip Bracket |
|
- | |||||
| *91286 | 3051070 | Screw, Hex Washer Head, 10-24 X 7/16, Special |
|
- | |||||
| *91287 | 3016303 | Clip-insulator Retainer |
|
- | |||||
| *91288 | 318055600 | Bracket-mounting |
|
- | |||||
| *91289 | 134178901 | Screw, 8 X 1/2 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| *91290 | 5303304030 | Bracket-backsplash |
|
- | |||||
| *91291 | 5303307980 | Screw, 8-32 X 7/16 |
|
Immediately | $ 14.18 | ||||
| *91292 | 316205500 | Nut, Hex, 10-32 (Replaces: 5303308427) |
|
$ 11.34 | |||||
| *91293 | 5303308449 | Fastener |
|
- | |||||
| *91294 | 5303317174 | Harness-wiring, Main |
|
- |
