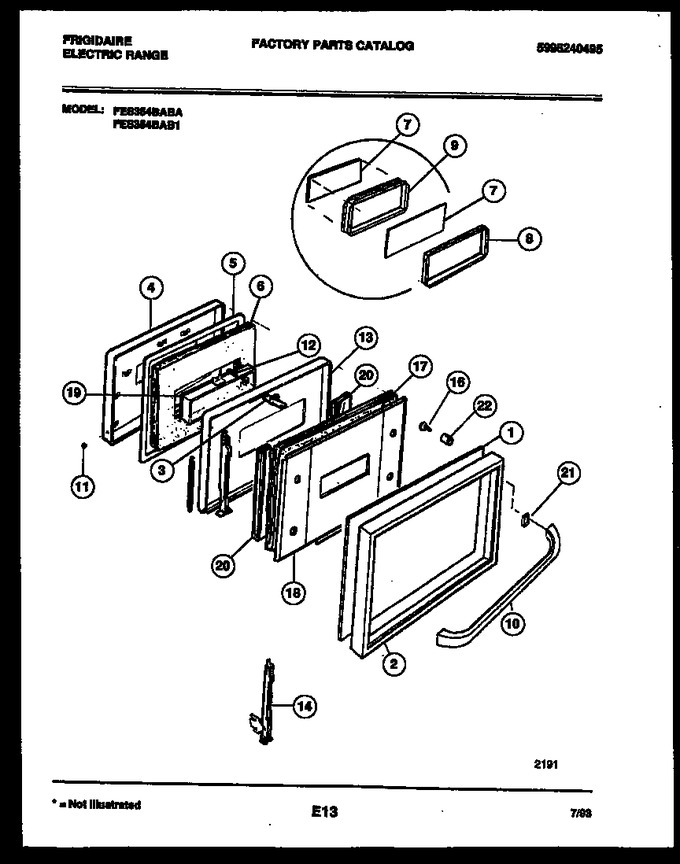

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303300192 | Glass Door |
|
- | |||||
| 2 | 5303300193 | Wrapper Trim |
|
- | |||||
| 3 | 5301167830 | Strike, Assembly |
|
- | |||||
| 4 | 5303300194 | Baffle Door Assembly |
|
- | |||||
| 5 | 5303051704 | Gasket |
|
$ 388.08 | |||||
| 6 | 5303269528 | Insulation-baffle |
|
- | |||||
| 7 | 5303209512 | Glass Heat Barrier (2) |
|
$ 150.41 | |||||
| 8 | 5303269564 | Collar-glass |
|
- | |||||
| 9 | 5303269679 | Spacer-glass |
|
- | |||||
| 10 | 5303300171 | Handle |
|
- | |||||
| 11 | 3051807 | Button, Plug (2) |
|
- | |||||
| 12 | 5303300195 | Screw (2) |
|
- | |||||
| 13 | 5303300196 | Liner Oven Door |
|
- | |||||
| 14 | 5303210232 | Door Hinge Assembly |
|
- | |||||
| 16 | 5303299481 | Screw-handle (2) |
|
- | |||||
| 17 | 5303269529 | Insulation-airwash |
|
- | |||||
| 18 | 5303300197 | Panel-airwash |
|
- | |||||
| 19 | 5303269535 | Gasket, Window |
|
- | |||||
| 20 | 5303212546 | Insulation-airwash |
|
- | |||||
| 21 | 5303300175 | Spacer-handle |
|
- | |||||
| 22 | 5303212865 | Spacer-handle Mounting |
|
- |
