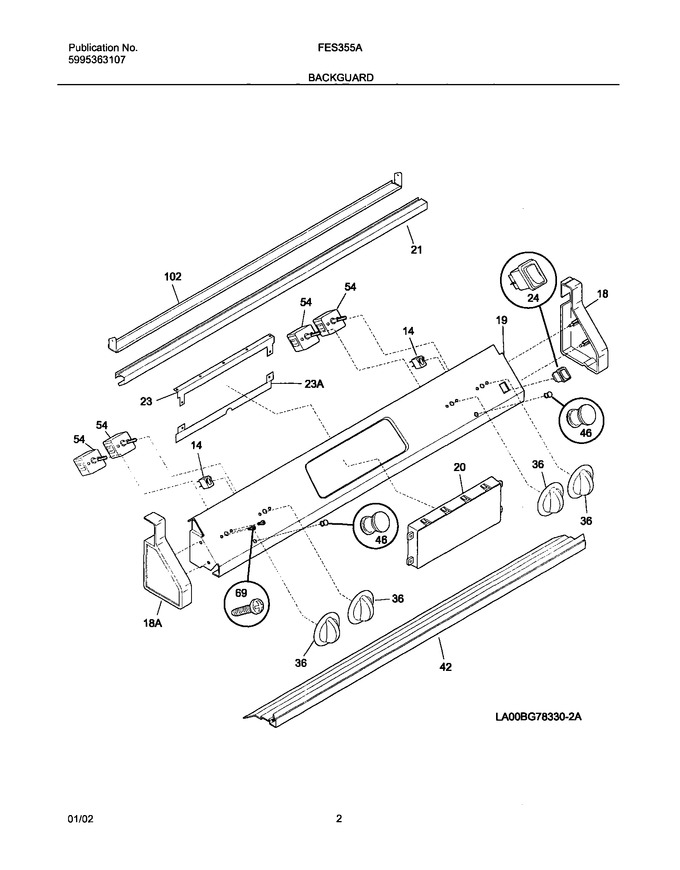

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	5303300160		End Cap, Black, Rh		Appelez-nous	-
19	318182991		Panel,control Mtg. ,black		Appelez-nous	-
21	318027803		Trim,backguard ,black ,top		Appelez-nous	-
23	318015042		Bracket,clock Mtg ,upper		Appelez-nous	-
36	318196604		Knob,control ,black		Appelez-nous	-
42	318106927		Trim,backguard ,black ,bottom				$ 188.06
46	318228310		Lens,indicator Light   (Replaces: 5303297274)			Immediately	$ 22.91
69	5303323137		Screw,8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
102	318055601		Bracket-mounting				$ 34.13
18A	5303300161		End Cap, Black, Lh		Appelez-nous	-
23A	318015043		Bracket,clock Mtg ,lower		Appelez-nous	-
F14	318076700		Light,indicator ,125v		Appelez-nous	-
F20	318185414		Clock/timer,electronic ,black		Appelez-nous	-
F24	5304527841		Switch-rocker,black   (Replaces: 316005602)			Immediately	$ 11.38
F54	318120501		Switch-surface Unit				$ 244.13
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303323145		Nut		Appelez-nous	-
NI	08002868		Screw 10 X 24 X 1/2				$ 14.18
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
