SELECT A DIAGRAM

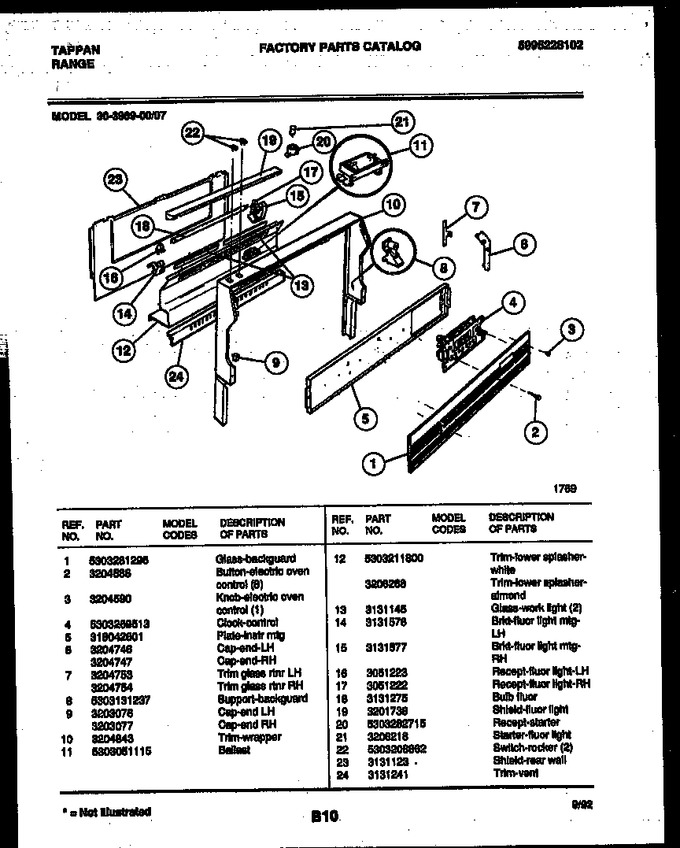

02 - Backguard


03 - Cooktop Parts


04 - Door Parts


05 - Drawer Parts


06 - Burner, Manifold And Gas Control


07 - Body Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303281296		Glass-backguard		Appelez-nous	-
2	3204586		Button-electric Oven Control (8)		Appelez-nous	-
3	3204590		Knob-electric Oven Control (1)		Appelez-nous	-
4	5303269513		Clock-control		Appelez-nous	-
5	316042601		Plate - Instr. Mtg		Appelez-nous	-
6	3204746		Cap-end Lh		Appelez-nous	-
7	3204753		Trim-glass Rtnr Lh		Appelez-nous	-
8	5303131237		Support, Backguard		Appelez-nous	-
9	3203076		Cap End-lh		Appelez-nous	-
10	3204843		Trim-wrapper		Appelez-nous	-
11	5303051115		Ballast		Appelez-nous	-
12	3206268		Trim-lower Splasher-almond		Appelez-nous	-
13	3131145		Glass, Work Light (2)		Appelez-nous	-
14	3131576		Brkt-fluor Light Mtg Lh		Appelez-nous	-
15	3131577		Brkt-fluor Light Mtg Rh		Appelez-nous	-
16	3051223		Recept-fluor Light Lh		Appelez-nous	-
17	3051222		Recept-fluor Light Rh		Appelez-nous	-
18	3131275		Bulb-fluor				$ 49.40
19	3201738		Shield-fluor Light		Appelez-nous	-
20	5303282715		Recept - Starter		Appelez-nous	-
21	3206218		Starter-fluor Light				$ 54.08
22	5303208662		Switch-rocker (2)		Appelez-nous	-
23	3131123		Shield, Rear Wall		Appelez-nous	-
24	3131241		Trim-vent		Appelez-nous	-
6A	3204747		Cap-end Rh		Appelez-nous	-
7A	3204754		Trim-glass Rtnr Rh		Appelez-nous	-
9A	3203077		Cap End-rh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
