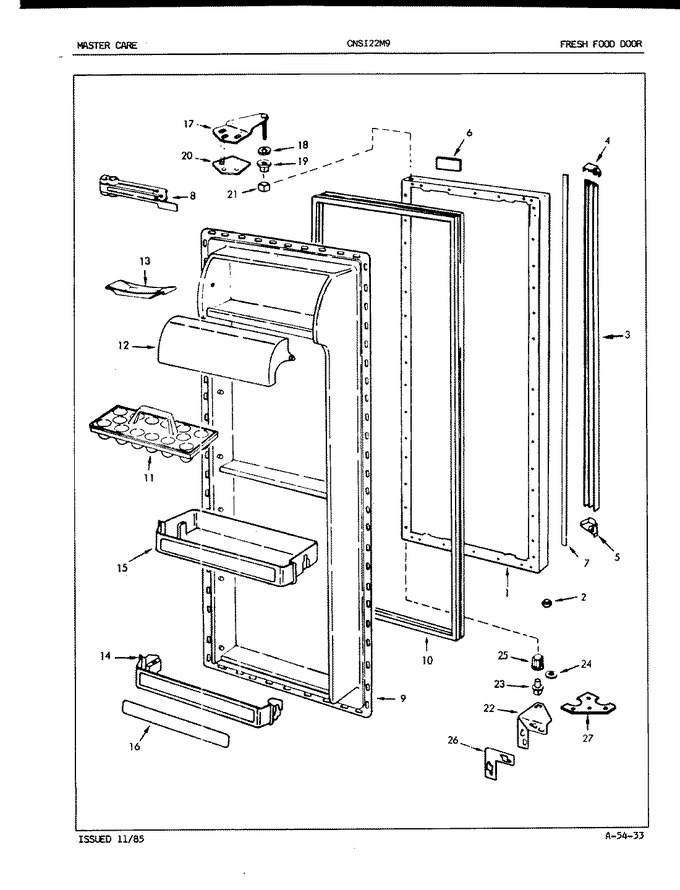

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	55587-26-AM		Outer Panel		Appelez-nous	-
2	495034-900		Plug Button, Door		Appelez-nous	-
3	56835-35		Handle		Appelez-nous	-
3	402100-1		Screw		Appelez-nous	-
3	420063-1		Washer		Appelez-nous	-
4	57947-1		End Cap		Appelez-nous	-
5	57947-2		End Cap		Appelez-nous	-
5	402077-7		Screw		Appelez-nous	-
6	62442-5		Nameplate		Appelez-nous	-
6	65211-1		Retainer, Nameplate		Appelez-nous	-
6	57493-1		Nameplate		Appelez-nous	-
7	65772-1		Trim		Appelez-nous	-
8	54485-1		Closer, Door		Appelez-nous	-
8	52613-1		Insulation, Closer		Appelez-nous	-
8	52614-1		Bracket, Closer		Appelez-nous	-
9	65641-5		Liner, Door		Appelez-nous	-
9	9986-12		Screw,door Liner		Appelez-nous	-
10	53712-2		Gasket		Appelez-nous	-
11	60066-5		Tray, Egg		Appelez-nous	-
12	65589-213		Door, Dairy		Appelez-nous	-
13	29936-2		Tray, Butter		Appelez-nous	-
14	65781-4		Shelf Front		Appelez-nous	-
15	65782-4		Shelf Front		Appelez-nous	-
16	65571-20		Insert		Appelez-nous	-
17	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
17	53709-16		Upper Hinge,(chrome)		Appelez-nous	-
18	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
19	66036-2		Bushing, Upper Hinge		Appelez-nous	-
20	65031-1		Shim, Upper Hinge		Appelez-nous	-
21	55990-1		Seal Sleeve		Appelez-nous	-
22	403062-5		Screw		Appelez-nous	-
22	60630-12		Hinge, Lower		Appelez-nous	-
23	53672-1		Pin, Lower Hinge		Appelez-nous	-
24	54233-1		Washer				$ 7.71
