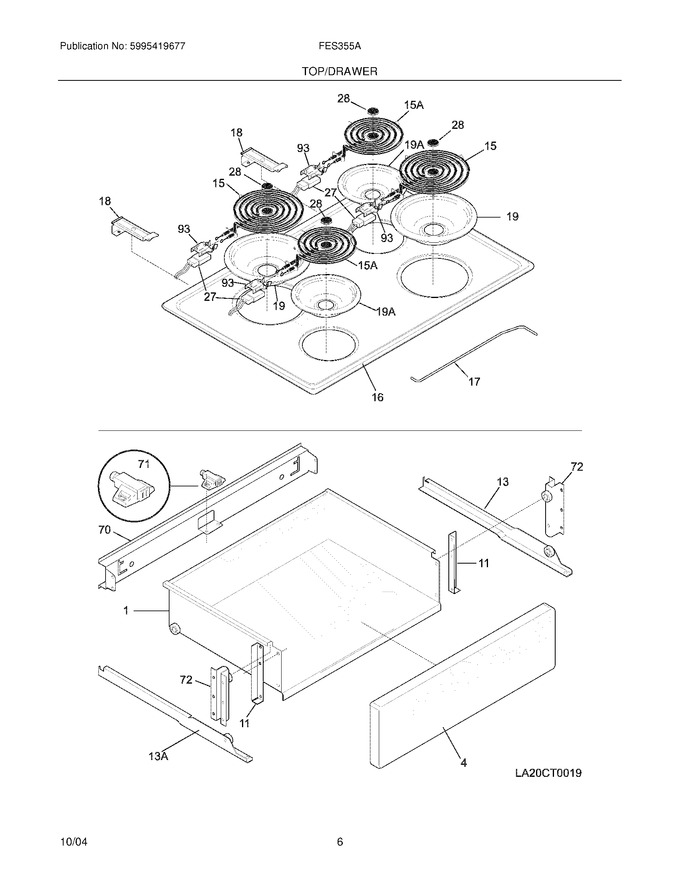

SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer   (Replaces: 318107104)			Immediately	$ 143.39
4	318134011		Panel,drawer ,white ,front		Appelez-nous	-
11	318263100		Bracket,drawer ,(2)		Appelez-nous	-
13	5303311129		Channel,drawer ,rh		Appelez-nous	-
16	5303300166		Main Top, White		Appelez-nous	-
17	3051554		Rod,support ,main Top Panel		Appelez-nous	-
18	5303305530		Bracket-hinge, Main Top, (2)		Appelez-nous	-
28	3017801		Medallion, Stainless Steel, Surf Elem		Appelez-nous	-
28	5303017715		Medallion,1 1/2``dia ,black ,surface Element				$ 64.46
70	5303311143		Bracket,slide ,rear		Appelez-nous	-
71	318279800		Magnet & Spring Assy				$ 26.37
72	5303311145		Bracket & Wheel Assy		Appelez-nous	-
93	318122500		Support,terminal Block ,(4)		Appelez-nous	-
13A	5303311130		Channel,drawer ,lh		Appelez-nous	-
F15	316442301		Element,surface ,8`` ,large   (Replaces: 5303012223)			Immediately	$ 44.39
F15A	318372211		Element,surface ,6`` ,small   (Replaces: 08067762)			Immediately	$ 45.14
F19	316048413		Pan,surface Element ,large ,chrome   (Replaces: 318067056)			Immediately	$ 9.85
F19A	316048414		Pan,surface Element ,small ,chrome   (Replaces: 318067046)			Immediately	$ 16.11
F27	318223413		Terminal Block,surface Element ,48`` ,orange Leads				$ 53.97
F27	318223414		Terminal Block,surface Element ,36`` ,white Leads		Appelez-nous	-
F27	318223415		Terminal Block,surface Element ,36`` ,yellow Leads		Appelez-nous	-
F27	318223418		Terminal Block,surface Element ,42`` ,brown Leads		Appelez-nous	-
NI	318248600		Bracket,drawer Channel		Appelez-nous	-
NI	5303325171		Washer,plastic		Appelez-nous	-
NI	318014800		Spacer				$ 16.59
NI	5303325173		Cap-plug		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89

    View Diagram in Separate Window       Print Part List
